Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: NotifyShipmentUnit
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:NotifyShipmentUnitType
Containing Schema: NotifyShipmentUnit.xsd
Abstract
Documentation:
The purpose of the NotifyShipmentUnit is to enable an application to provide a ShipmentUnit information from another business application module. The NotifyShipmentUnit is typically published from the business application that is the master or owner of the ShipmentUnit information to other systems needing to know about the changes to the ShipmentUnit information. This information is provided as information it is up to the receiving system to determine what to do with it.

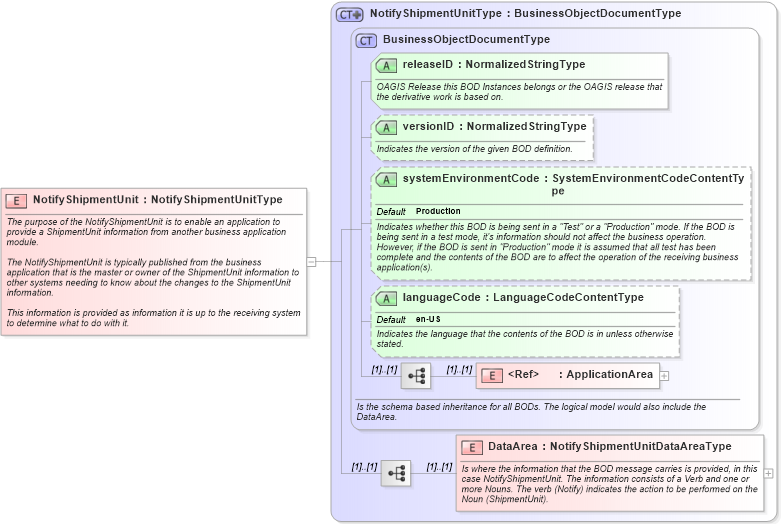

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema notifyshipmentunit_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into NotifyShipmentUnitType in schema notifyshipmentunit_xsdXSD Diagram of NotifyShipmentUnit in schema notifyshipmentunit_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="NotifyShipmentUnit" type="NotifyShipmentUnitType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the NotifyShipmentUnit is to enable an application to provide a ShipmentUnit information from another business application module.

The NotifyShipmentUnit is typically published from the business application that is the master or owner of the ShipmentUnit information to other systems needing to know about the changes to the ShipmentUnit information.

This information is provided as information it is up to the receiving system to determine what to do with it.  </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
