Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ProcessRemittanceAdvice
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ProcessRemittanceAdviceType
Containing Schema: ProcessRemittanceAdvice.xsd
Abstract
Documentation:
The purpose of the ProcessRemittanceAdvice is to enable an application to request specific RemittanceAdvice information from another business application module. The response to the ProcessRemittanceAdvice is the ProcessRemittanceAdvice.

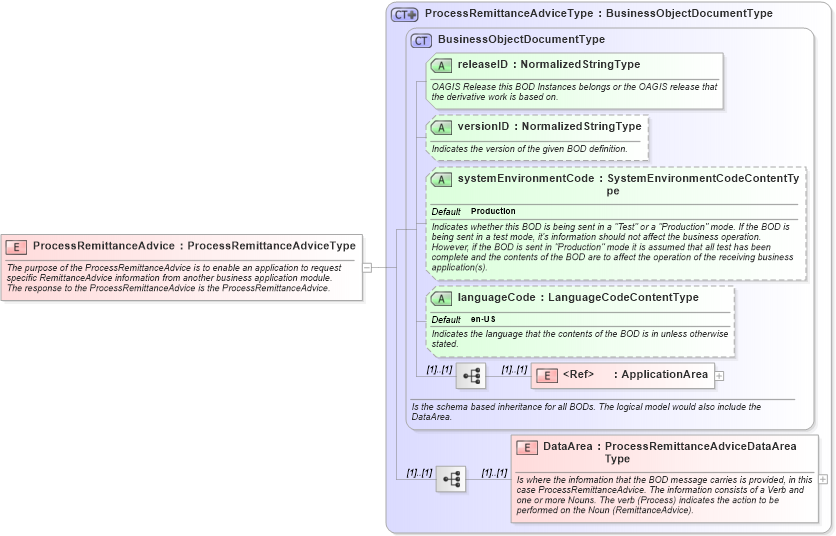

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema processremittanceadvice_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into ProcessRemittanceAdviceType in schema processremittanceadvice_xsdXSD Diagram of ProcessRemittanceAdvice in schema processremittanceadvice_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ProcessRemittanceAdvice" type="ProcessRemittanceAdviceType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the ProcessRemittanceAdvice is to enable an application to request specific RemittanceAdvice information from another business application module.  The response to the ProcessRemittanceAdvice is the ProcessRemittanceAdvice.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
