Definition Type: ComplexType
Name: ProductionPerformanceType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: ProductionPerformance.xsd
Abstract

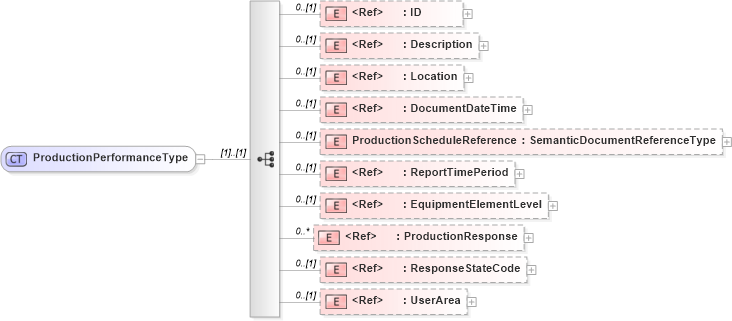

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ResponseStateCode in schema fields_xsd Drilldown into ProductionResponse in schema productionperformance_xsd Drilldown into EquipmentElementLevel in schema fields_xsd Drilldown into ReportTimePeriod in schema components_xsd Drilldown into ProductionScheduleReference in schema productionperformance_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into Location in schema components_xsd Drilldown into Description in schema fields_xsd Drilldown into ID in schema fields_xsdXSD Diagram of ProductionPerformanceType in schema productionperformance_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="ProductionPerformanceType">
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0" />
        <xsd:element ref="Description" minOccurs="0" />
        <xsd:element ref="Location" minOccurs="0" />
        <xsd:element ref="DocumentDateTime" minOccurs="0" />
        <xsd:element name="ProductionScheduleReference" type="SemanticDocumentReferenceType" minOccurs="0" />
        <xsd:element ref="ReportTimePeriod" minOccurs="0" />
        <xsd:element ref="EquipmentElementLevel" minOccurs="0" />
        <xsd:element ref="ProductionResponse" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ResponseStateCode" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
Description nsA:Description 0 (1)
Location nsA:Location 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
ProductionScheduleReference nsA:ProductionScheduleReference 0 (1)
ReportTimePeriod nsA:ReportTimePeriod 0 (1)
EquipmentElementLevel nsA:EquipmentElementLevel 0 (1)
ProductionResponse nsA:ProductionResponse 0 unbounded
ResponseStateCode nsA:ResponseStateCode 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:ProductionPerformance
