Definition Type: ComplexType
Name: ProductionResponseType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: ProductionPerformance.xsd
Abstract
Collapse XSD Schema Diagram:

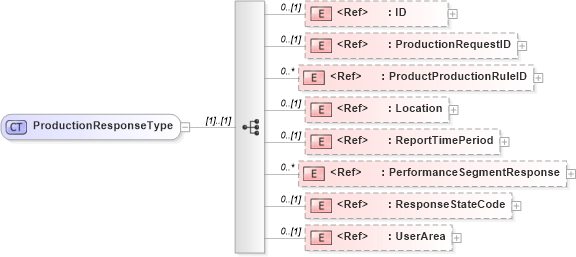

Drilldown into UserArea in schema fields_xsd Drilldown into ResponseStateCode in schema fields_xsd Drilldown into PerformanceSegmentResponse in schema productionperformance_xsd Drilldown into ReportTimePeriod in schema components_xsd Drilldown into Location in schema components_xsd Drilldown into ProductProductionRuleID in schema fields_xsd Drilldown into ProductionRequestID in schema fields_xsd Drilldown into ID in schema fields_xsdXSD Diagram of ProductionResponseType in schema productionperformance_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="ProductionResponseType">
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0" />
        <xsd:element ref="ProductionRequestID" minOccurs="0" />
        <xsd:element ref="ProductProductionRuleID" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Location" minOccurs="0" />
        <xsd:element ref="ReportTimePeriod" minOccurs="0" />
        <xsd:element ref="PerformanceSegmentResponse" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ResponseStateCode" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
ProductionRequestID nsA:ProductionRequestID 0 (1)
ProductProductionRuleID nsA:ProductProductionRuleID 0 unbounded
Location nsA:Location 0 (1)
ReportTimePeriod nsA:ReportTimePeriod 0 (1)
PerformanceSegmentResponse nsA:PerformanceSegmentResponse 0 unbounded
ResponseStateCode nsA:ResponseStateCode 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:ProductionResponse
