Definition Type: ComplexType
Name: ProductionScheduleType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: ProductionSchedule.xsd
Abstract

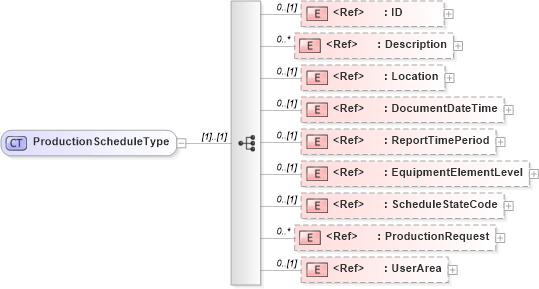

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ProductionRequest in schema productionschedule_xsd Drilldown into ScheduleStateCode in schema fields_xsd Drilldown into EquipmentElementLevel in schema fields_xsd Drilldown into ReportTimePeriod in schema components_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into Location in schema components_xsd Drilldown into Description in schema fields_xsd Drilldown into ID in schema fields_xsdXSD Diagram of ProductionScheduleType in schema productionschedule_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="ProductionScheduleType">
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0" />
        <xsd:element ref="Description" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Location" minOccurs="0" />
        <xsd:element ref="DocumentDateTime" minOccurs="0" />
        <xsd:element ref="ReportTimePeriod" minOccurs="0" />
        <xsd:element ref="EquipmentElementLevel" minOccurs="0" />
        <xsd:element ref="ScheduleStateCode" minOccurs="0" />
        <xsd:element ref="ProductionRequest" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
Description nsA:Description 0 unbounded
Location nsA:Location 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
ReportTimePeriod nsA:ReportTimePeriod 0 (1)
EquipmentElementLevel nsA:EquipmentElementLevel 0 (1)
ScheduleStateCode nsA:ScheduleStateCode 0 (1)
ProductionRequest nsA:ProductionRequest 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:ProductionSchedule
