Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: RemittanceAdviceHeaderType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:StatusEnabledHeaderType
Containing Schema: RemittanceAdvice.xsd
Abstract

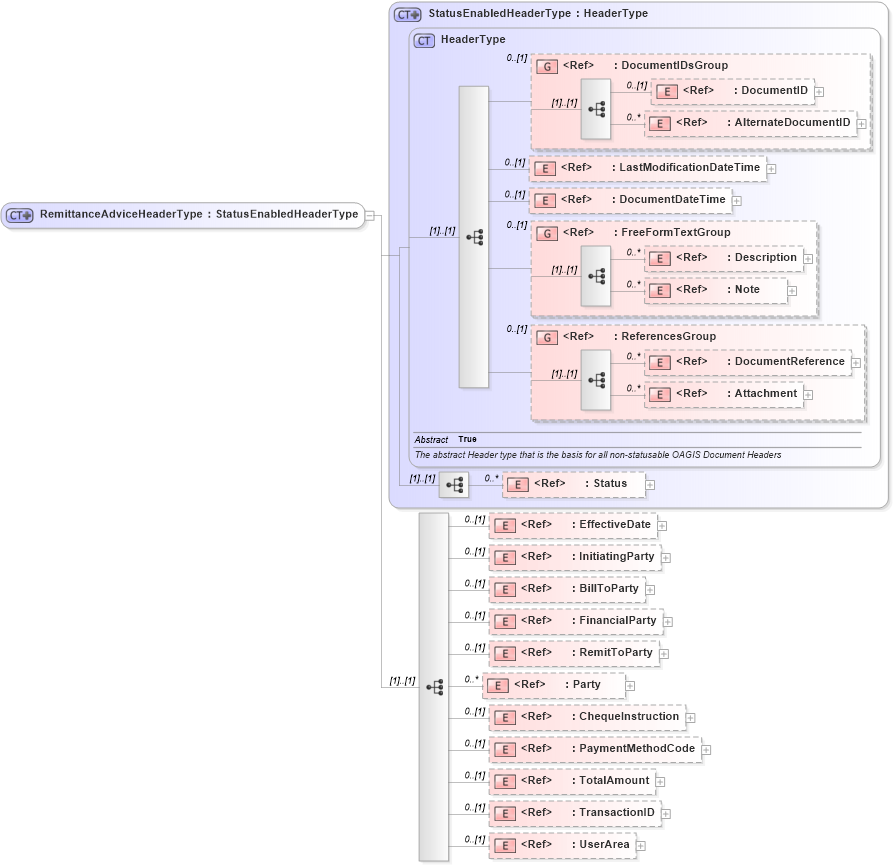

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into TransactionID in schema fields_xsd Drilldown into TotalAmount in schema fields_xsd Drilldown into PaymentMethodCode in schema fields_xsd Drilldown into ChequeInstruction in schema financialcomponents_xsd Drilldown into Party in schema components_xsd Drilldown into RemitToParty in schema components_xsd Drilldown into FinancialParty in schema components_xsd Drilldown into BillToParty in schema components_xsd Drilldown into InitiatingParty in schema components_xsd Drilldown into EffectiveDate in schema fields_xsd Drilldown into Status in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into LastModificationDateTime in schema fields_xsd Drilldown into AlternateDocumentID in schema components_xsd Drilldown into DocumentID in schema components_xsd Drilldown into DocumentIDsGroup in schema components_xsd Drilldown into HeaderType in schema components_xsd Drilldown into StatusEnabledHeaderType in schema components_xsdXSD Diagram of RemittanceAdviceHeaderType in schema remittanceadvice_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="RemittanceAdviceHeaderType">
    <xsd:complexContent>
        <xsd:extension base="StatusEnabledHeaderType">
            <xsd:sequence>
                <xsd:element ref="EffectiveDate" minOccurs="0" />
                <xsd:element ref="InitiatingParty" minOccurs="0" />
                <xsd:element ref="BillToParty" minOccurs="0" />
                <xsd:element ref="FinancialParty" minOccurs="0" />
                <xsd:element ref="RemitToParty" minOccurs="0" />
                <xsd:element ref="Party" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="ChequeInstruction" minOccurs="0" />
                <xsd:element ref="PaymentMethodCode" minOccurs="0" />
                <xsd:element ref="TotalAmount" minOccurs="0" />
                <xsd:element ref="TransactionID" minOccurs="0" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
LastModificationDateTime nsA:LastModificationDateTime 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
Status nsA:Status 0 unbounded
EffectiveDate nsA:EffectiveDate 0 (1)
InitiatingParty nsA:InitiatingParty 0 (1)
BillToParty nsA:BillToParty 0 (1)
FinancialParty nsA:FinancialParty 0 (1)
RemitToParty nsA:RemitToParty 0 (1)
Party nsA:Party 0 unbounded
ChequeInstruction nsA:ChequeInstruction 0 (1)
PaymentMethodCode nsA:PaymentMethodCode 0 (1)
TotalAmount nsA:TotalAmount 0 (1)
TransactionID nsA:TransactionID 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDsGroup 0 (1)
<xs:group> nsA:FreeFormTextGroup 0 (1)
<xs:group> nsA:ReferencesGroup 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:RemittanceAdviceHeader
