Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: SegmentRequirement
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:SegmentRequirementType
Containing Schema: ProductionSchedule.xsd
Abstract

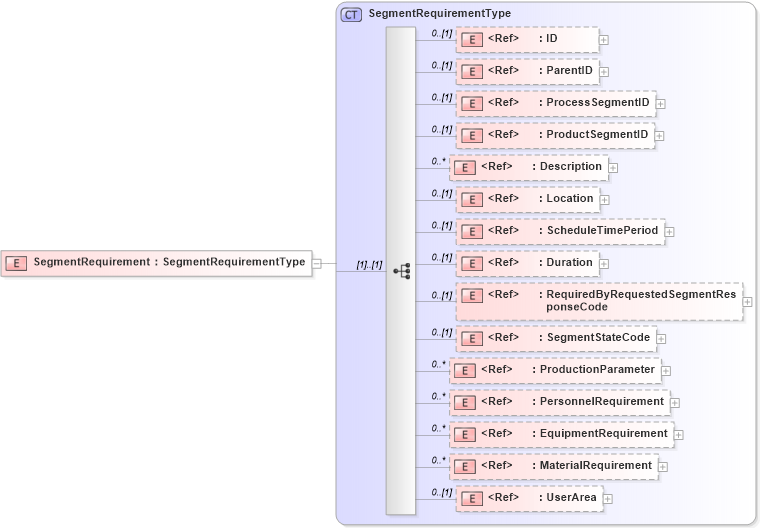

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into MaterialRequirement in schema productionschedule_xsd Drilldown into EquipmentRequirement in schema productionschedule_xsd Drilldown into PersonnelRequirement in schema productionschedule_xsd Drilldown into ProductionParameter in schema productionschedule_xsd Drilldown into SegmentStateCode in schema fields_xsd Drilldown into RequiredByRequestedSegmentResponseCode in schema fields_xsd Drilldown into Duration in schema fields_xsd Drilldown into ScheduleTimePeriod in schema components_xsd Drilldown into Location in schema components_xsd Drilldown into Description in schema fields_xsd Drilldown into ProductSegmentID in schema fields_xsd Drilldown into ProcessSegmentID in schema fields_xsd Drilldown into ParentID in schema fields_xsd Drilldown into ID in schema fields_xsd Drilldown into SegmentRequirementType in schema productionschedule_xsdXSD Diagram of SegmentRequirement in schema productionschedule_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="SegmentRequirement" type="SegmentRequirementType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
ParentID nsA:ParentID 0 (1)
ProcessSegmentID nsA:ProcessSegmentID 0 (1)
ProductSegmentID nsA:ProductSegmentID 0 (1)
Description nsA:Description 0 unbounded
Location nsA:Location 0 (1)
ScheduleTimePeriod nsA:ScheduleTimePeriod 0 (1)
Duration nsA:Duration 0 (1)
RequiredByRequestedSegmentResponseCode nsA:RequiredByRequestedSegmentResponseCode 0 (1)
SegmentStateCode nsA:SegmentStateCode 0 (1)
ProductionParameter nsA:ProductionParameter 0 unbounded
PersonnelRequirement nsA:PersonnelRequirement 0 unbounded
EquipmentRequirement nsA:EquipmentRequirement 0 unbounded
MaterialRequirement nsA:MaterialRequirement 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
