Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: SyncCatalog
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:SyncCatalogType
Containing Schema: SyncCatalog.xsd
Abstract
Documentation:
SyncCatalog is used to synchronize catalog information across systems. The Sync indicates that the send of the SyncCatalog is the owner of the information being passed, additionally it is understood that the receiver of the SyncCatalog is a sub-system that must accept the data as provided by the owne of the information.

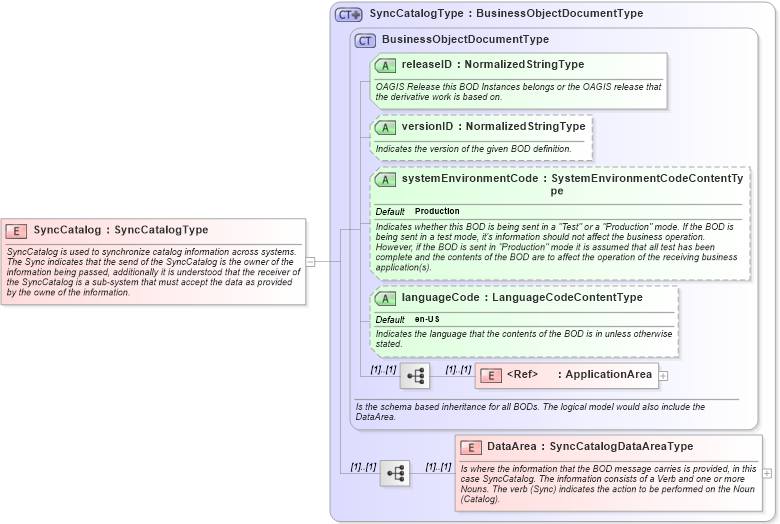

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema synccatalog_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into SyncCatalogType in schema synccatalog_xsdXSD Diagram of SyncCatalog in schema synccatalog_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="SyncCatalog" type="SyncCatalogType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">SyncCatalog is used to synchronize catalog information across systems. The Sync indicates that the send of the SyncCatalog is the owner of the information being passed, additionally it is understood that the receiver of the SyncCatalog is a sub-system that must accept the data as provided by the owne of the information.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
