Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: SyncProductionPerformance
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:SyncProductionPerformanceType
Containing Schema: SyncProductionPerformance.xsd
Abstract
Documentation:
The purpose of the SyncProductionPerformance is to synchronize the information known about ProductionPerformances between systems. The SyncProductionPerformance MUST be generated from the system that own the ProductionPerformance and sent to systems that count on the sending system to maintain the ProductionPerformance information.

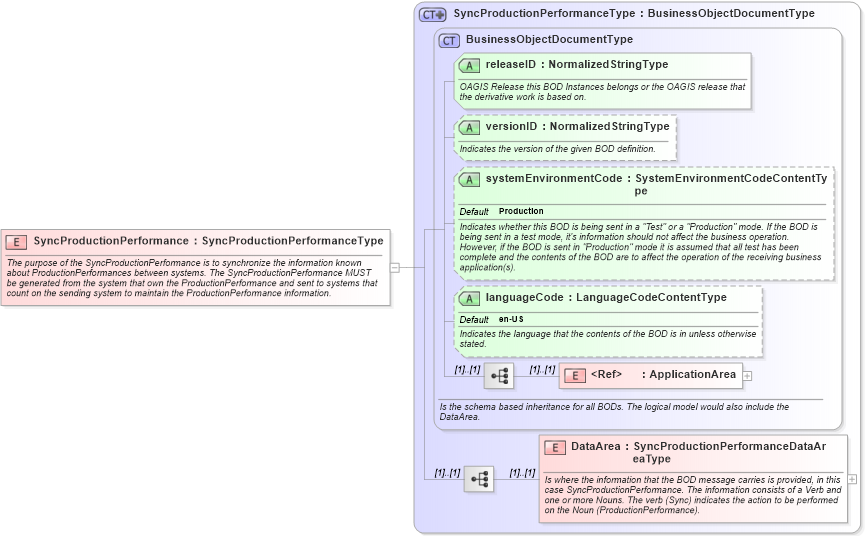

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema syncproductionperformance_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into SyncProductionPerformanceType in schema syncproductionperformance_xsdXSD Diagram of SyncProductionPerformance in schema syncproductionperformance_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="SyncProductionPerformance" type="SyncProductionPerformanceType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the SyncProductionPerformance is to synchronize the information known about ProductionPerformances between systems. The SyncProductionPerformance MUST be generated from the system that own the ProductionPerformance and sent to systems that count on the sending system to maintain the ProductionPerformance information.


</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
