Documentation for OASIS Content Assembly Mechanism (CAM) TC
Definition Type: ComplexType
Name: declarationType
Namespace: http://www.oasis-open.org/committees/cam
Containing Schema: CAM-v1_1.xsd
Abstract

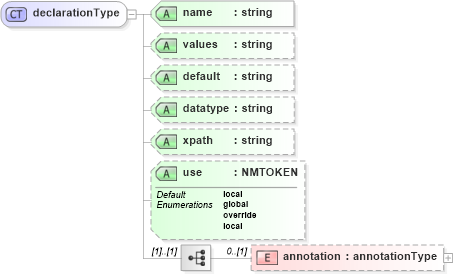

Collapse XSD Schema Diagram:
Drilldown into annotation in schema cam-v1_1_xsd Drilldown into use in schema cam-v1_1_xsd Drilldown into xpath in schema cam-v1_1_xsd Drilldown into datatype in schema cam-v1_1_xsd Drilldown into default in schema cam-v1_1_xsd Drilldown into values in schema cam-v1_1_xsd Drilldown into name in schema cam-v1_1_xsdXSD Diagram of declarationType in schema cam-v1_1_xsd (OASIS Content Assembly Mechanism (CAM) TC)
Collapse XSD Schema Code:
<xs:complexType name="declarationType">
    <xs:sequence>
        <xs:element name="annotation" type="annotationType" minOccurs="0" />
    </xs:sequence>
    <xs:attribute name="name" type="xs:string" use="required" />
    <xs:attribute name="values" type="xs:string" />
    <xs:attribute name="default" type="xs:string" />
    <xs:attribute name="datatype" type="xs:string" />
    <xs:attribute name="xpath" type="xs:string" />
    <xs:attribute name="use" default="local">
        <xs:simpleType>
            <xs:restriction base="xs:NMTOKEN">
                <xs:enumeration value="global" />
                <xs:enumeration value="override" />
                <xs:enumeration value="local" />
            </xs:restriction>
        </xs:simpleType>
    </xs:attribute>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
annotation nsA:annotation 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
name nsA:name Required
values nsA:values (Optional)
default nsA:default (Optional)
datatype nsA:datatype (Optional)
xpath nsA:xpath (Optional)
use nsA:use local (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:Parameter
