Documentation for OASIS Content Assembly Mechanism (CAM) TC
Definition Type: ComplexType
Name: HeaderType
Namespace: http://www.oasis-open.org/committees/cam
Containing Schema: CAM-v1_1.xsd
Abstract
Collapse XSD Schema Diagram:

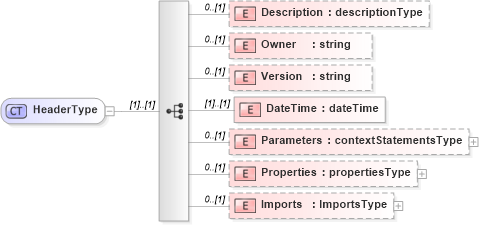

Drilldown into Imports in schema cam-v1_1_xsd Drilldown into Properties in schema cam-v1_1_xsd Drilldown into Parameters in schema cam-v1_1_xsd Drilldown into DateTime in schema cam-v1_1_xsd Drilldown into Version in schema cam-v1_1_xsd Drilldown into Owner in schema cam-v1_1_xsd Drilldown into Description in schema cam-v1_1_xsdXSD Diagram of HeaderType in schema cam-v1_1_xsd (OASIS Content Assembly Mechanism (CAM) TC)
Collapse XSD Schema Code:
<xs:complexType name="HeaderType">
    <xs:sequence>
        <xs:element name="Description" type="descriptionType" minOccurs="0" />
        <xs:element name="Owner" type="xs:string" minOccurs="0" />
        <xs:element name="Version" type="xs:string" minOccurs="0" />
        <xs:element name="DateTime" type="xs:dateTime" />
        <xs:element name="Parameters" type="contextStatementsType" minOccurs="0" />
        <xs:element name="Properties" type="propertiesType" minOccurs="0" />
        <xs:element name="Imports" type="ImportsType" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Description nsA:Description 0 (1)
Owner nsA:Owner 0 (1)
Version nsA:Version 0 (1)
DateTime nsA:DateTime (1) (1)
Parameters nsA:Parameters 0 (1)
Properties nsA:Properties 0 (1)
Imports nsA:Imports 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:Header
