Documentation for OASIS Content Assembly Mechanism (CAM) TC
Definition Type: Element
Name: Structure
Namespace: http://www.oasis-open.org/committees/cam
Containing Schema: CAM-v1_1.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

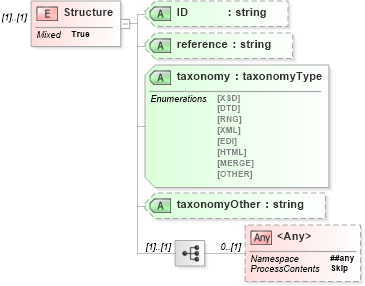

Collapse XSD Schema Diagram:
Drilldown into taxonomyOther in schema cam-v1_1_xsd Drilldown into taxonomy in schema cam-v1_1_xsd Drilldown into reference in schema cam-v1_1_xsd Drilldown into ID in schema cam-v1_1_xsdXSD Diagram of Structure in schema cam-v1_1_xsd (OASIS Content Assembly Mechanism (CAM) TC)
Collapse XSD Schema Code:
<xs:element name="Structure">
    <xs:complexType mixed="true">
        <xs:sequence>
            <xs:any namespace="##any" processContents="skip" minOccurs="0" />
        </xs:sequence>
        <xs:attribute name="ID" type="xs:string" />
        <xs:attribute name="reference" type="xs:string" />
        <xs:attribute name="taxonomy" type="taxonomyType" use="required" />
        <xs:attribute name="taxonomyOther" type="xs:string" use="optional" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:any> Allowed namespace: '##any' 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ID nsA:ID (Optional)
reference nsA:reference (Optional)
taxonomy nsA:taxonomy Required
taxonomyOther nsA:taxonomyOther Optional
