Documentation for OASIS Directory Services Markup Language (DSML)
Definition Type: ComplexType
Name: DsmlModification
Namespace: urn:oasis:names:tc:DSML:2:0:core
Containing Schema: DSMLv2.xsd
Abstract
Collapse XSD Schema Diagram:

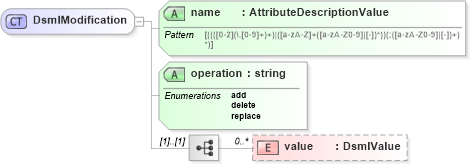

Drilldown into value in schema dsmlv2_xsd Drilldown into operation in schema dsmlv2_xsd Drilldown into name in schema dsmlv2_xsdXSD Diagram of DsmlModification in schema dsmlv2_xsd (OASIS Directory Services Markup Language (DSML))
Collapse XSD Schema Code:
<xsd:complexType name="DsmlModification">
    <xsd:sequence>
        <xsd:element name="value" type="DsmlValue" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="name" type="AttributeDescriptionValue" use="required" />
    <xsd:attribute name="operation" use="required">
        <xsd:simpleType>
            <xsd:restriction base="xsd:string">
                <xsd:enumeration value="add" />
                <xsd:enumeration value="delete" />
                <xsd:enumeration value="replace" />
            </xsd:restriction>
        </xsd:simpleType>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
value nsA:value 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
name nsA:name Required
operation nsA:operation Required
Collapse Derivation Tree:
Collapse References:
nsA:modification
