Documentation for OASIS Directory Services Markup Language (DSML)
Definition Type: Group
Name: DSMLResponses
Namespace: urn:oasis:names:tc:DSML:2:0:core
Containing Schema: DSMLv2.xsd

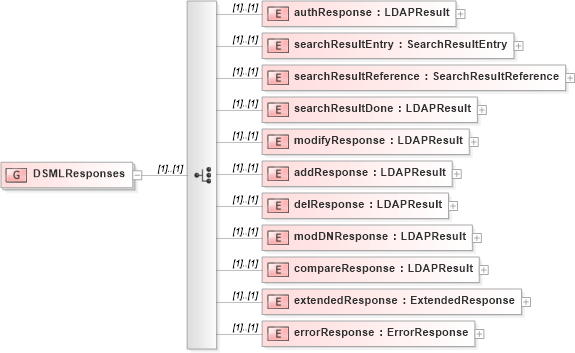

Collapse XSD Schema Diagram:
Drilldown into errorResponse in schema dsmlv2_xsd Drilldown into extendedResponse in schema dsmlv2_xsd Drilldown into compareResponse in schema dsmlv2_xsd Drilldown into modDNResponse in schema dsmlv2_xsd Drilldown into delResponse in schema dsmlv2_xsd Drilldown into addResponse in schema dsmlv2_xsd Drilldown into modifyResponse in schema dsmlv2_xsd Drilldown into searchResultDone in schema dsmlv2_xsd Drilldown into searchResultReference in schema dsmlv2_xsd Drilldown into searchResultEntry in schema dsmlv2_xsd Drilldown into authResponse in schema dsmlv2_xsdXSD Diagram of DSMLResponses in schema dsmlv2_xsd (OASIS Directory Services Markup Language (DSML))
Collapse XSD Schema Code:
<xsd:group name="DSMLResponses">
    <xsd:choice>
        <xsd:element name="authResponse" type="LDAPResult" />
        <xsd:element name="searchResultEntry" type="SearchResultEntry" />
        <xsd:element name="searchResultReference" type="SearchResultReference" />
        <xsd:element name="searchResultDone" type="LDAPResult" />
        <xsd:element name="modifyResponse" type="LDAPResult" />
        <xsd:element name="addResponse" type="LDAPResult" />
        <xsd:element name="delResponse" type="LDAPResult" />
        <xsd:element name="modDNResponse" type="LDAPResult" />
        <xsd:element name="compareResponse" type="LDAPResult" />
        <xsd:element name="extendedResponse" type="ExtendedResponse" />
        <xsd:element name="errorResponse" type="ErrorResponse" />
    </xsd:choice>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
authResponse nsA:authResponse (1) (1)
searchResultEntry nsA:searchResultEntry (1) (1)
searchResultReference nsA:searchResultReference (1) (1)
searchResultDone nsA:searchResultDone (1) (1)
modifyResponse nsA:modifyResponse (1) (1)
addResponse nsA:addResponse (1) (1)
delResponse nsA:delResponse (1) (1)
modDNResponse nsA:modDNResponse (1) (1)
compareResponse nsA:compareResponse (1) (1)
extendedResponse nsA:extendedResponse (1) (1)
errorResponse nsA:errorResponse (1) (1)
