Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: arch
Namespace: http://oval.mitre.org/XMLSchema/oval_results#redhat
Type: oval_results:subtestStringType
Containing Schema: redhat-oval-results-schema.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
This is the architecture for which the RPM was built, like : i386, ppc, sparc, noarch. In the case of an apache rpm named httpd-2.0.40-21.11.4.i686.rpm, this value would be i686.

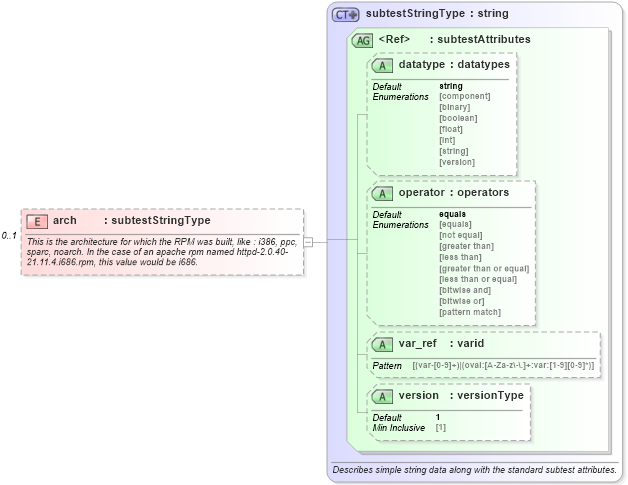

Collapse XSD Schema Diagram:
Drilldown into version in schema oval-results-schema_xsd Drilldown into var_ref in schema oval-results-schema_xsd Drilldown into operator in schema oval-results-schema_xsd Drilldown into datatype in schema oval-results-schema_xsd Drilldown into subtestAttributes in schema oval-results-schema_xsd Drilldown into subtestStringType in schema oval-results-schema_xsdXSD Diagram of arch in schema redhat-oval-results-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="arch" type="oval_results:subtestStringType" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>This is the architecture for which the RPM was built, like : i386, ppc, sparc, noarch. In the case of an apache rpm named httpd-2.0.40-21.11.4.i686.rpm, this value would be i686.</xsd:documentation>
        <xsd:appinfo>
            <parent_test>RPM Info Test</parent_test>
            <cardinality>0-1</cardinality>
            <content>string</content>
            <valid_datatypes>string</valid_datatypes>
            <valid_operators>equals, not equal, pattern match</valid_operators>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval_results:datatype string Optional
operator oval_results:operator equals Optional
var_ref oval_results:var_ref Optional
version oval_results:version 1 Optional
Collapse Derivation Tree:
