Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: arch
Namespace: http://oval.mitre.org/XMLSchema/system_characteristics#redhat
Type: system_characteristics:dataStringType
Containing Schema: redhat-system-characteristics-schema.xsd
MinOccurs 1
MaxOccurs 1
Abstract
Documentation:
This is the architecture for which the RPM was built, like : i386, ppc, sparc, noarch. In the case of an apache rpm named httpd-2.0.40-21.11.4.i686.rpm, this value would be i686.

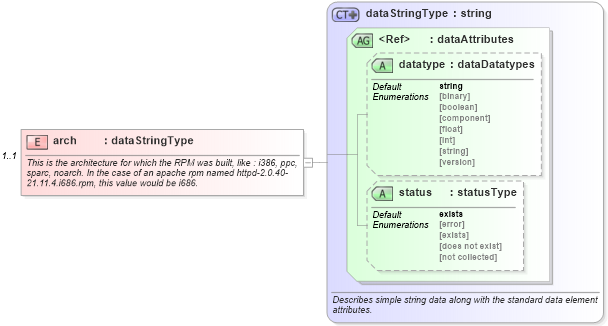

Collapse XSD Schema Diagram:
Drilldown into status in schema system-characteristics-schema_xsd Drilldown into datatype in schema system-characteristics-schema_xsd Drilldown into dataAttributes in schema system-characteristics-schema_xsd Drilldown into dataStringType in schema system-characteristics-schema_xsdXSD Diagram of arch in schema redhat-system-characteristics-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="arch" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>This is the architecture for which the RPM was built, like : i386, ppc, sparc, noarch. In the case of an apache rpm named httpd-2.0.40-21.11.4.i686.rpm, this value would be i686.</xsd:documentation>
        <xsd:appinfo>
            <parent_item>RPM Info Item</parent_item>
            <cardinality>1</cardinality>
            <content>string</content>
            <valid_datatypes>string</valid_datatypes>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype system_characteristics:datatype string Optional
status system_characteristics:status exists Optional
Collapse Derivation Tree:
