Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: data
Namespace: http://oval.mitre.org/XMLSchema/system_characteristics#solaris
Type: system_characteristics:dataType
Containing Schema: solaris-system-characteristics-schema.xsd
MinOccurs 0
MaxOccurs 1
Abstract

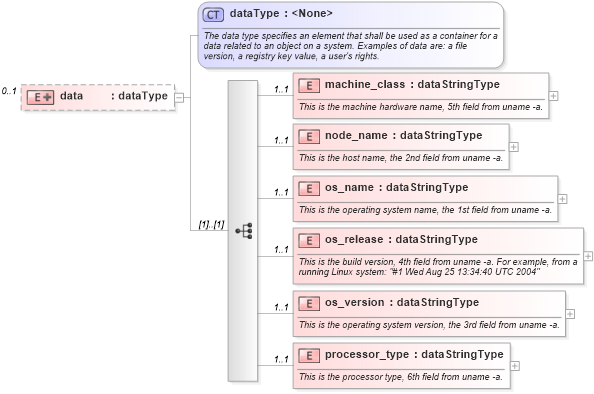

Collapse XSD Schema Diagram:
Drilldown into processor_type in schema solaris-system-characteristics-schema_xsd Drilldown into os_version in schema solaris-system-characteristics-schema_xsd Drilldown into os_release in schema solaris-system-characteristics-schema_xsd Drilldown into os_name in schema solaris-system-characteristics-schema_xsd Drilldown into node_name in schema solaris-system-characteristics-schema_xsd Drilldown into machine_class in schema solaris-system-characteristics-schema_xsd Drilldown into dataType in schema system-characteristics-schema_xsdXSD Diagram of data in schema solaris-system-characteristics-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="data" minOccurs="0" maxOccurs="1">
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="system_characteristics:dataType">
                <xsd:sequence>
                    <xsd:element name="machine_class" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>This is the machine hardware name, 5th field from uname -a.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>uname_item</parent_item>
                                <cardinality>1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="node_name" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>This is the host name, the 2nd field from uname -a.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>uname_item</parent_item>
                                <cardinality>1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="os_name" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>This is the operating system name, the 1st field from uname -a.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>uname_item</parent_item>
                                <cardinality>1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="os_release" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>This is the build version, 4th field from uname -a. For example, from a running Linux system: "#1 Wed Aug 25 13:34:40 UTC 2004"</xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>uname_item</parent_item>
                                <cardinality>1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="os_version" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>This is the operating system version, the 3rd field from uname -a.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>uname_item</parent_item>
                                <cardinality>1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="processor_type" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>This is the processor type, 6th field from uname -a.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>uname_item</parent_item>
                                <cardinality>1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
machine_class solaris:machine_class 1 1
node_name solaris:node_name 1 1
os_name solaris:os_name 1 1
os_release solaris:os_release 1 1
os_version solaris:os_version 1 1
processor_type solaris:processor_type 1 1
Collapse Derivation Tree:
