<xsd:element name="data" minOccurs="0" maxOccurs="1">
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="system_characteristics:dataType">
<xsd:sequence>
<xsd:element name="type" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Specifies the type of data stored by the registry key.</xsd:documentation>
<xsd:appinfo>
<parent_item>registry_item</parent_item>
<cardinality>1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
<xsd:complexType>
<xsd:simpleContent>
<xsd:restriction base="system_characteristics:dataStringType">
<xsd:enumeration value="reg_binary" />
<xsd:enumeration value="reg_dword" />
<xsd:enumeration value="reg_expand_sz" />
<xsd:enumeration value="reg_multi_sz" />
<xsd:enumeration value="reg_qword" />
<xsd:enumeration value="reg_sz" />
<xsd:enumeration value="" />
</xsd:restriction>
</xsd:simpleContent>
</xsd:complexType>
</xsd:element>
<xsd:element name="value" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>The actual value of the specified registry key.</xsd:documentation>
<xsd:appinfo>
<parent_item>registry_item</parent_item>
<cardinality>1</cardinality>
<content>string</content>
<valid_datatypes>binary, boolean, float, int, string</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
|

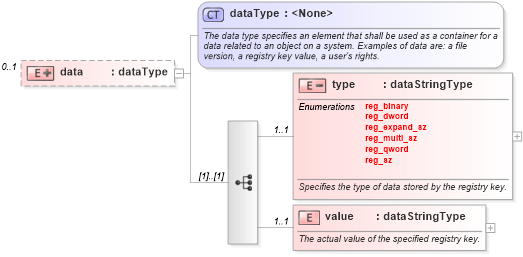

XSD Schema Diagram:
