Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: data
Namespace: http://oval.mitre.org/XMLSchema/oval#windows
Type: oval:dataType
Containing Schema: windows-schema.xsd
MinOccurs 0
MaxOccurs 1
Abstract

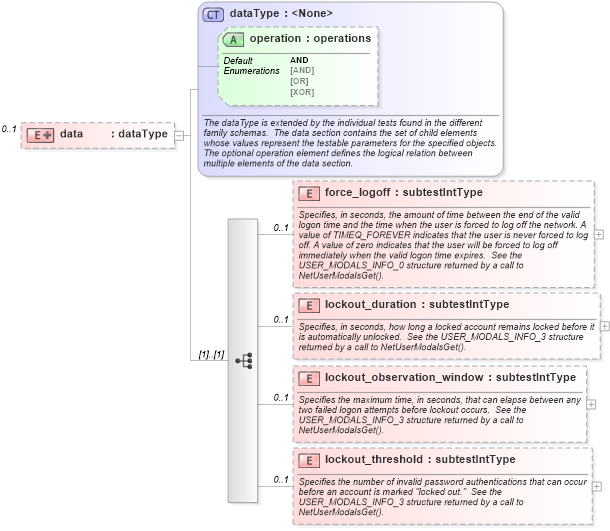

Collapse XSD Schema Diagram:
Drilldown into lockout_threshold in schema windows-schema_xsd Drilldown into lockout_observation_window in schema windows-schema_xsd Drilldown into lockout_duration in schema windows-schema_xsd Drilldown into force_logoff in schema windows-schema_xsd Drilldown into operation in schema oval-schema_xsd Drilldown into dataType in schema oval-schema_xsdXSD Diagram of data in schema windows-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="data" minOccurs="0" maxOccurs="1">
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval:dataType">
                <xsd:sequence>
                    <xsd:element name="force_logoff" type="oval:subtestIntType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Specifies, in seconds, the amount of time between the end of the valid logon time and the time when the user is forced to log off the network. A value of TIMEQ_FOREVER indicates that the user is never forced to log off. A value of zero indicates that the user will be forced to log off immediately when the valid logon time expires.  See the USER_MODALS_INFO_0 structure returned by a call to NetUserModalsGet().</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Lockout Policy Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>integer</content>
                                <valid_datatypes>integer</valid_datatypes>
                                <valid_operators>equals, not equal, greater than, less than, greater than or equal, less than or equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="lockout_duration" type="oval:subtestIntType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Specifies, in seconds, how long a locked account remains locked before it is automatically unlocked.  See the USER_MODALS_INFO_3 structure returned by a call to NetUserModalsGet().</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Lockout Policy Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>integer</content>
                                <valid_datatypes>integer</valid_datatypes>
                                <valid_operators>equals, not equal, greater than, less than, greater than or equal, less than or equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="lockout_observation_window" type="oval:subtestIntType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Specifies the maximum time, in seconds, that can elapse between any two failed logon attempts before lockout occurs.  See the USER_MODALS_INFO_3 structure returned by a call to NetUserModalsGet().</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Lockout Policy Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>integer</content>
                                <valid_datatypes>integer</valid_datatypes>
                                <valid_operators>equals, not equal, greater than, less than, greater than or equal, less than or equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="lockout_threshold" type="oval:subtestIntType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Specifies the number of invalid password authentications that can occur before an account is marked "locked out."  See the USER_MODALS_INFO_3 structure returned by a call to NetUserModalsGet().</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Lockout Policy Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>integer</content>
                                <valid_datatypes>integer</valid_datatypes>
                                <valid_operators>equals, not equal, greater than, less than, greater than or equal, less than or equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
force_logoff windows:force_logoff 0 1
lockout_duration windows:lockout_duration 0 1
lockout_observation_window windows:lockout_observation_window 0 1
lockout_threshold windows:lockout_threshold 0 1
Collapse Child Attributes:
Name Type Default Value Use
operation oval:operation AND Optional
Collapse Derivation Tree:
