Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: definition_data
Namespace: http://oval.mitre.org/XMLSchema/oval_results#redhat
Type: oval_results:definitionDataType
Containing Schema: redhat-oval-results-schema.xsd
MinOccurs 0
MaxOccurs 1
Abstract

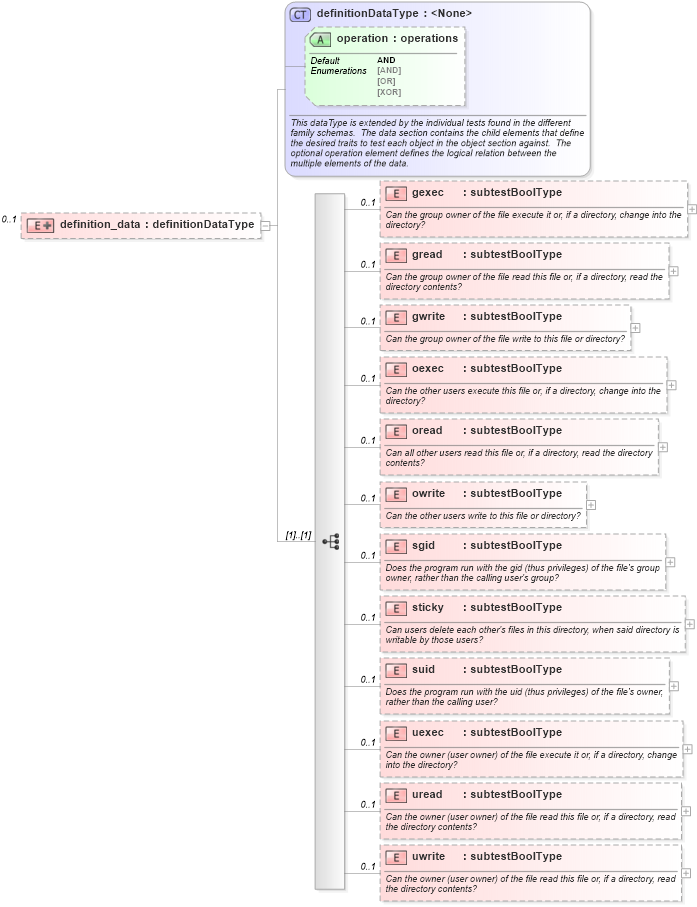

Collapse XSD Schema Diagram:
Drilldown into uwrite in schema redhat-oval-results-schema_xsd Drilldown into uread in schema redhat-oval-results-schema_xsd Drilldown into uexec in schema redhat-oval-results-schema_xsd Drilldown into suid in schema redhat-oval-results-schema_xsd Drilldown into sticky in schema redhat-oval-results-schema_xsd Drilldown into sgid in schema redhat-oval-results-schema_xsd Drilldown into owrite in schema redhat-oval-results-schema_xsd Drilldown into oread in schema redhat-oval-results-schema_xsd Drilldown into oexec in schema redhat-oval-results-schema_xsd Drilldown into gwrite in schema redhat-oval-results-schema_xsd Drilldown into gread in schema redhat-oval-results-schema_xsd Drilldown into gexec in schema redhat-oval-results-schema_xsd Drilldown into operation in schema oval-results-schema_xsd Drilldown into definitionDataType in schema oval-results-schema_xsdXSD Diagram of definition_data in schema redhat-oval-results-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="definition_data" minOccurs="0" maxOccurs="1">
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval_results:definitionDataType">
                <xsd:sequence>
                    <xsd:element name="gexec" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Can the group owner of the file execute it or, if a directory, change into the directory?</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Permission Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="gread" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Can the group owner of the file read this file or, if a directory, read the directory contents?</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Permission Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="gwrite" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Can the group owner of the file write to this file or directory?</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Permission Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="oexec" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Can the other users execute this file or, if a directory, change into the directory?</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Permission Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="oread" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Can all other users read this file or, if a directory, read the directory contents?</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Permission Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="owrite" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Can the other users write to this file or directory?</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Permission Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="sgid" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Does the program run with the gid (thus privileges) of the file's group owner, rather than the calling user's group?</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Permission Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="sticky" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Can users delete each other's files in this directory, when said directory is writable by those users?</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Permission Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="suid" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Does the program run with the uid (thus privileges) of the file's owner, rather than the calling user?</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Permission Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="uexec" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Can the owner (user owner) of the file execute it or, if a directory, change into the directory?</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Permission Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="uread" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Can the owner (user owner) of the file read this file or, if a directory, read the directory contents?</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Permission Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="uwrite" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Can the owner (user owner) of the file read this file or, if a directory, read the directory contents?</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Permission Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
gexec redhat:gexec 0 1
gread redhat:gread 0 1
gwrite redhat:gwrite 0 1
oexec redhat:oexec 0 1
oread redhat:oread 0 1
owrite redhat:owrite 0 1
sgid redhat:sgid 0 1
sticky redhat:sticky 0 1
suid redhat:suid 0 1
uexec redhat:uexec 0 1
uread redhat:uread 0 1
uwrite redhat:uwrite 0 1
Collapse Child Attributes:
Name Type Default Value Use
operation oval_results:operation AND Optional
Collapse Derivation Tree:
