<xsd:element name="definition_data" minOccurs="1" maxOccurs="1">
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="oval_results:definitionDataType">
<xsd:sequence>
<xsd:element name="max_passwd_age" type="oval_results:subtestIntType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Specifies, in seconds, the maximum allowable password age. A value of TIMEQ_FOREVER (-1) indicates that the password never expires. The minimum valid value for this element is ONE_DAY (86400).</xsd:documentation>
<xsd:appinfo>
<parent_test>Password Policy Test</parent_test>
<cardinality>0-1</cardinality>
<content>integer</content>
<valid_datatypes>integer</valid_datatypes>
<valid_operators>equals, not equal, greater than, less than, greater than or equal, less than or equal</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="min_passwd_age" type="oval_results:subtestIntType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Specifies the minimum number of seconds that can elapse between the time a password changes and when it can be changed again. A value of zero indicates that no delay is required between password updates.</xsd:documentation>
<xsd:appinfo>
<parent_test>Password Policy Test</parent_test>
<cardinality>0-1</cardinality>
<content>integer</content>
<valid_datatypes>integer</valid_datatypes>
<valid_operators>equals, not equal, greater than, less than, greater than or equal, less than or equal</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="min_passwd_len" type="oval_results:subtestIntType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Specifies the minimum allowable password length. Valid values for this element are zero through PWLEN.</xsd:documentation>
<xsd:appinfo>
<parent_test>Password Policy Test</parent_test>
<cardinality>0-1</cardinality>
<content>integer</content>
<valid_datatypes>integer</valid_datatypes>
<valid_operators>equals, not equal, greater than, less than, greater than or equal, less than or equal</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="password_hist_len" type="oval_results:subtestIntType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Specifies the length of password history maintained. A new password cannot match any of the previous usrmod0_password_hist_len passwords. Valid values for this element are zero through DEF_MAX_PWHIST.</xsd:documentation>
<xsd:appinfo>
<parent_test>Password Policy Test</parent_test>
<cardinality>0-1</cardinality>
<content>integer</content>
<valid_datatypes>integer</valid_datatypes>
<valid_operators>equals, not equal, greater than, less than, greater than or equal, less than or equal</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="password_complexity" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>A boolean value that signifies whether passwords must meet the complexity requirements put forth by the operating system.</xsd:documentation>
<xsd:appinfo>
<parent_test>Password Policy Test</parent_test>
<cardinality>0-1</cardinality>
<content>integer</content>
<valid_datatypes>boolean</valid_datatypes>
<valid_operators>equals, not equal</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="reversible_encryption" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Determines whether Windows 2000 Server, Windows 2000 Professional, and Windows XP Professional store passwords using reversible encryption.</xsd:documentation>
<xsd:appinfo>
<parent_test>Password Policy Test</parent_test>
<cardinality>0-1</cardinality>
<content>integer</content>
<valid_datatypes>boolean</valid_datatypes>
<valid_operators>equals, not equal</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
|

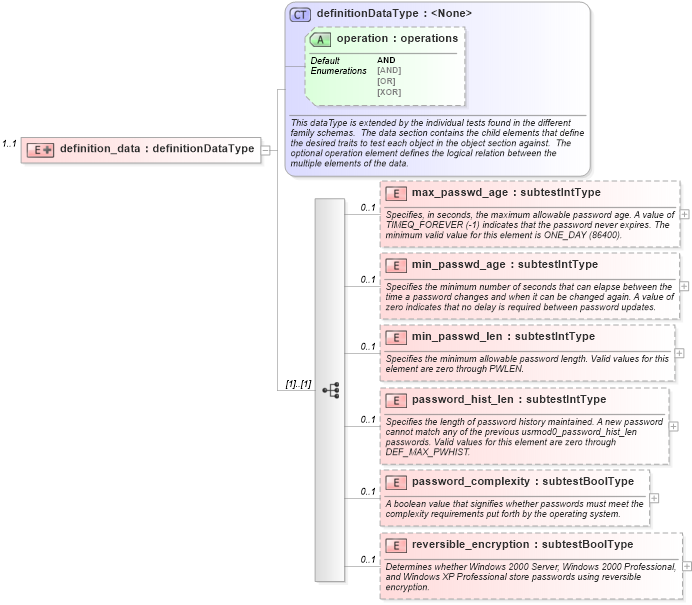

XSD Schema Diagram:
