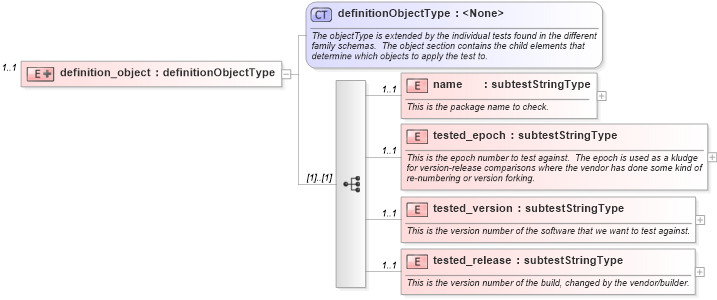

<xsd:element name="definition_object" minOccurs="1" maxOccurs="1">
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval_results:definitionObjectType">
                <xsd:sequence>
                    <xsd:element name="name" type="oval_results:subtestStringType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>This is the package name to check.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Package Version Compare Test</parent_test>
                                <cardinality>1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal, pattern match</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="tested_epoch" type="oval_results:subtestStringType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>This is the epoch number to test against.  The epoch is used as a kludge for version-release comparisons where the vendor has done some kind of re-numbering or version forking.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Package Version Compare Test</parent_test>
                                <cardinality>1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal, pattern match</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="tested_version" type="oval_results:subtestStringType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>This is the version number of the software that we want to test against.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Package Version Compare Test</parent_test>
                                <cardinality>1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal, pattern match</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="tested_release" type="oval_results:subtestStringType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>This is the version number of the build, changed by the vendor/builder.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Package Version Compare Test</parent_test>
                                <cardinality>1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal, pattern match</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>

• oval_results:definitionObjectType
  • definition_object
