<xsd:element name="file_item" substitutionGroup="system_characteristics:item">
<xsd:annotation>
<xsd:documentation>This element has been deprecated in version 4.1 of the solaris-system-characterics-schema and will be removed completely in version 5. It is recommended that all future OVAL Content use the file_item found in the unix-system-characterics-schema.</xsd:documentation>
<xsd:documentation>This item stores file metadata.</xsd:documentation>
<xsd:appinfo>
<item_name>File Item</item_name>
<extends>itemType</extends>
<valid_sections>message, object, data</valid_sections>
<example>
</example>
</xsd:appinfo>
</xsd:annotation>
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="system_characteristics:itemType">
<xsd:sequence>
<xsd:element name="object" minOccurs="1" maxOccurs="1">
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="system_characteristics:objectType">
<xsd:sequence>
<xsd:element name="path" type="system_characteristics:objectStringType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Specifies the absolute path to a file on the machine.</xsd:documentation>
<xsd:appinfo>
<parent_item>file_item</parent_item>
<cardinality>1</cardinality>
<content>string</content>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
<xsd:element name="data" minOccurs="0" maxOccurs="1">
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="system_characteristics:dataType">
<xsd:sequence>
<xsd:element name="type" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>This is the file's type: regular file (regular), directory, named pipe (fifo), symbolic link, socket or block special.</xsd:documentation>
<xsd:appinfo>
<parent_item>file_item</parent_item>
<cardinality>1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="group_id" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>This is the group owner of the file, by group number.</xsd:documentation>
<xsd:appinfo>
<parent_item>file_item</parent_item>
<cardinality>1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="user_id" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>The numeric user id, or uid, is the third column of each user's entry in /etc/passwd. This element represents the owner of the file.</xsd:documentation>
<xsd:appinfo>
<parent_item>file_item</parent_item>
<cardinality>1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="a_time" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>This is the time of the last access, in seconds since the last epoch.</xsd:documentation>
<xsd:appinfo>
<parent_item>file_item</parent_item>
<cardinality>1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="c_time" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>This is the time of the last change to the file's inode, which stores all.</xsd:documentation>
<xsd:appinfo>
<parent_item>file_item</parent_item>
<cardinality>1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="m_time" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>This is the time of the last change to the file's contents.</xsd:documentation>
<xsd:appinfo>
<parent_item>file_item</parent_item>
<cardinality>1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="md5" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>This is the MD5 hash of the file's contents, which serves as a kind of content
integrity check.</xsd:documentation>
<xsd:appinfo>
<parent_item>file_item</parent_item>
<cardinality>1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="gexec" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Can the group owner of the file execute it or, if a directory, change into the directory?</xsd:documentation>
<xsd:appinfo>
<parent_item>file_item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="gread" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Can the group owner of the file read this file or, if a directory, read the directory contents?</xsd:documentation>
<xsd:appinfo>
<parent_item>file_item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="gwrite" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Can the group owner of the file write to this file or directory?</xsd:documentation>
<xsd:appinfo>
<parent_item>file_item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="oexec" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Can the other users execute this file or, if a directory, change into the directory?</xsd:documentation>
<xsd:appinfo>
<parent_item>file_item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="oread" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Can all other users read this file or, if a directory, read the directory contents?</xsd:documentation>
<xsd:appinfo>
<parent_item>file_item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="owrite" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Can the other users write to this file or directory?</xsd:documentation>
<xsd:appinfo>
<parent_item>file_item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="sgid" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Does the program run with the gid (thus privileges) of the file's group owner, rather than the calling user's group?</xsd:documentation>
<xsd:appinfo>
<parent_item>file_item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="sticky" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Can users delete each other's files in this directory, when said directory is writable by those users?</xsd:documentation>
<xsd:appinfo>
<parent_item>file_item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="suid" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Does the program run with the uid (thus privileges) of the file's owner, rather than the calling user?</xsd:documentation>
<xsd:appinfo>
<parent_item>file_item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="uexec" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Can the owner (user owner) of the file execute it or, if a directory, change into the directory?</xsd:documentation>
<xsd:appinfo>
<parent_item>file_item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="uread" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Can the owner (user owner) of the file read this file or, if a directory, read the directory contents?</xsd:documentation>
<xsd:appinfo>
<parent_item>file_item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="uwrite" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Can the owner (user owner) of the file read this file or, if a directory, read the directory contents?</xsd:documentation>
<xsd:appinfo>
<parent_item>file_item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
|

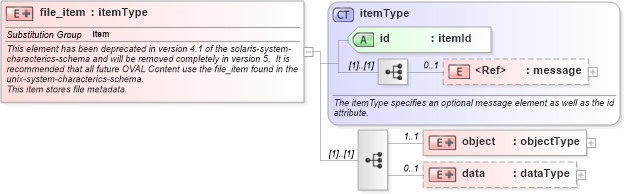

XSD Schema Diagram:
