Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: fs_vol_is_compressed
Namespace: http://oval.mitre.org/XMLSchema/oval#windows
Type: oval:subtestBoolType
Containing Schema: windows-schema.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
The specified volume is a compressed volume; for example, a DoubleSpace volume.

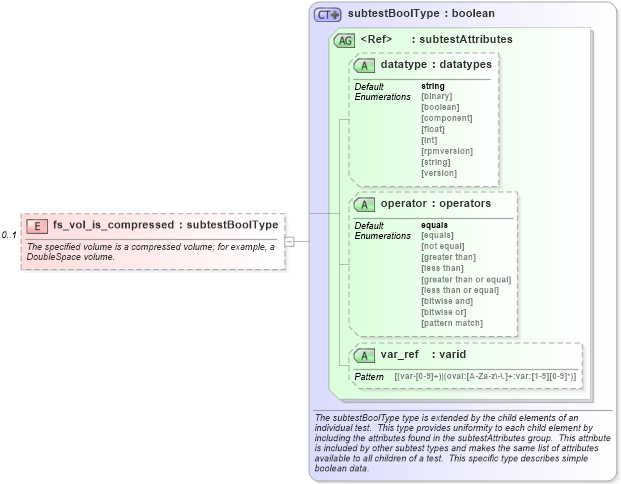

Collapse XSD Schema Diagram:
Drilldown into var_ref in schema oval-schema_xsd Drilldown into operator in schema oval-schema_xsd Drilldown into datatype in schema oval-schema_xsd Drilldown into subtestAttributes in schema oval-schema_xsd Drilldown into subtestBoolType in schema oval-schema_xsdXSD Diagram of fs_vol_is_compressed in schema windows-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="fs_vol_is_compressed" type="oval:subtestBoolType" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>The specified volume is a compressed volume; for example, a DoubleSpace volume.</xsd:documentation>
        <xsd:appinfo>
            <parent_test>Volume Test</parent_test>
            <cardinality>0-1</cardinality>
            <content>boolean</content>
            <valid_datatypes>boolean</valid_datatypes>
            <valid_operators>equals, not equal</valid_operators>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval:datatype string Optional
operator oval:operator equals Optional
var_ref oval:var_ref Optional
Collapse Derivation Tree:
