<xsd:element name="group_test" substitutionGroup="oval:test">
<xsd:annotation>
<xsd:documentation>The windows group test allows the different users that belong to specific groups be tested. Note that the user element can appear an unlimited number of times. In such cases, the test is wether the specified user belongs to ALL the included groups (data operator is AND) or that the user belongs to one of the included groups (data operator is OR).</xsd:documentation>
<xsd:appinfo>
<test_name>Group Test</test_name>
<extends>standardTestType</extends>
<valid_sections>notes, object, data</valid_sections>
<example>
<group_test id="wgt-0" check="all" comment="dave and jon are members of the Administrators group" xmlns="http://oval.mitre.org/XMLSchema/oval#windows">
<oval:notes xmlns:oval="http://oval.mitre.org/XMLSchema/oval">
<oval:note>This is an example test written under version 4 of the OVAL schema. It is meant to give a short overview of the test and might not contain every possible child element.</oval:note>
</oval:notes>
<object>
<group>Administrators</group>
</object>
<data operation="AND">
<enabled>true</enabled>
<user>dave</user>
<user>jon</user>
</data>
</group_test>
</example>
</xsd:appinfo>
</xsd:annotation>
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="oval:standardTestType">
<xsd:sequence>
<xsd:element name="object" minOccurs="1" maxOccurs="1">
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="oval:objectType">
<xsd:sequence>
<xsd:element name="group" type="oval:subtestStringType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>A string that represents the name of a particular group.</xsd:documentation>
<xsd:appinfo>
<parent_test>Group Test</parent_test>
<cardinality>1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
<valid_operators>equals, not equal, pattern match</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
<xsd:element name="data" minOccurs="0" maxOccurs="1">
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="oval:dataType">
<xsd:sequence>
<xsd:element name="enabled" type="oval:subtestBoolType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>This element holds a boolean value that specifies whether the particular group is enabled or not.</xsd:documentation>
<xsd:appinfo>
<parent_test>Group Test</parent_test>
<cardinality>0-1</cardinality>
<content>string</content>
<valid_datatypes>boolean</valid_datatypes>
<valid_operators>equals, not equal</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="user" type="oval:subtestStringType" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation>A string that represents the name of a particular user. This element can be included multiple times in order to test that a group contains a number of different users.</xsd:documentation>
<xsd:appinfo>
<parent_test>Group Test</parent_test>
<cardinality>0-n</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
<valid_operators>equals, not equal, pattern match</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
|

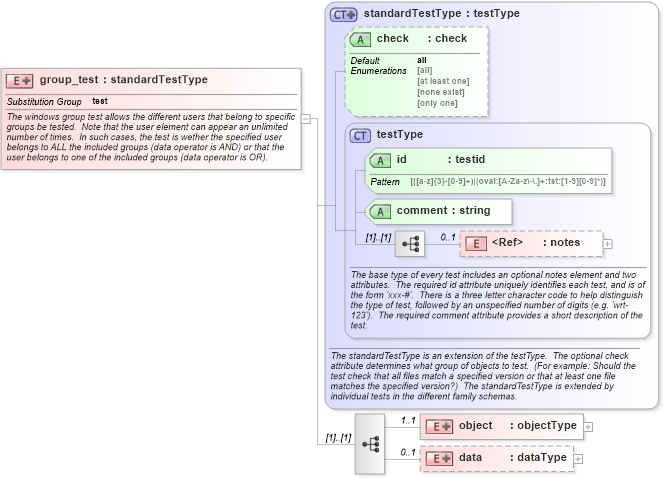

XSD Schema Diagram:
