<xsd:element name="interface_item" substitutionGroup="system_characteristics:item">
<xsd:annotation>
<xsd:documentation>This element has been deprecated in version 4.1 of the debian-system-characterics-schema and will be removed completely in version 5. It is recommended that all future OVAL Content use the interface_item found in the unix-system-characterics-schema.</xsd:documentation>
<xsd:documentation>Collect data about the interfaces on a system.</xsd:documentation>
<xsd:appinfo>
<item_name>Interface Item</item_name>
<extends>itemType</extends>
<valid_sections>message, object, data</valid_sections>
<example>
</example>
</xsd:appinfo>
</xsd:annotation>
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="system_characteristics:itemType">
<xsd:sequence>
<xsd:element name="object" minOccurs="1" maxOccurs="1">
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="system_characteristics:objectType">
<xsd:sequence>
<xsd:element name="name" type="system_characteristics:objectStringType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>This is the interface (eth0, eth1, etc.) name to check.</xsd:documentation>
<xsd:appinfo>
<parent_item>Interface Item</parent_item>
<cardinality>1</cardinality>
<content>string</content>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
<xsd:element name="data" minOccurs="0" maxOccurs="1">
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="system_characteristics:dataType">
<xsd:sequence>
<xsd:element name="hardware_addr" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>This is the hardware or MAC address of the physical network card.</xsd:documentation>
<xsd:appinfo>
<parent_item>Interface Item</parent_item>
<cardinality>1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="inet_addr" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>This is the IP address of the interface.</xsd:documentation>
<xsd:appinfo>
<parent_item>Interface Item</parent_item>
<cardinality>1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="broadcast_addr" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>This is the broadcast IP address for this interface's network, like 192.168.255.255.</xsd:documentation>
<xsd:appinfo>
<parent_item>Interface Item</parent_item>
<cardinality>1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="netmask" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>This is the bitmask used to calculate the inteface's IP network. The network number is calculated by bitwise-ANDing this with the IP address. The host number on that network is calculated by bitwise-XORing this with the IP address.</xsd:documentation>
<xsd:appinfo>
<parent_item>Interface Item</parent_item>
<cardinality>1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="flag" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation>This is the interface flag line, which generally contains flags like "UP" to denote an active interface, "PROMISC" to note that the interface is listening for Ethernet frames not specifically addressed to it, and others.</xsd:documentation>
<xsd:appinfo>
<parent_item>Interface Item</parent_item>
<cardinality>1-n</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
|

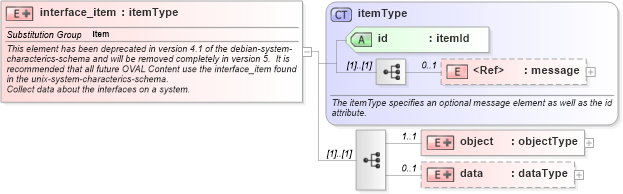

XSD Schema Diagram:
