Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: key
Namespace: http://oval.mitre.org/XMLSchema/oval_results#windows
Type: oval_results:subtestStringType
Containing Schema: windows-oval-results-schema.xsd
MinOccurs 1
MaxOccurs 1
Abstract
Documentation:
This element describes a registry key to be tested. Note that the hive portion of the string should not be inclueded, as this data should be found under the hive element.

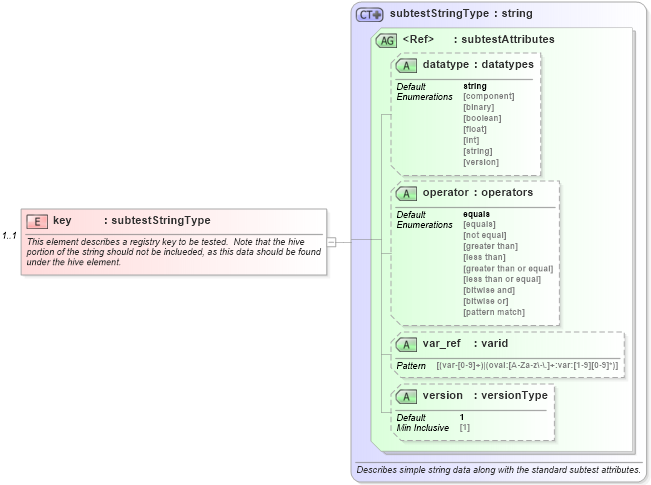

Collapse XSD Schema Diagram:
Drilldown into version in schema oval-results-schema_xsd Drilldown into var_ref in schema oval-results-schema_xsd Drilldown into operator in schema oval-results-schema_xsd Drilldown into datatype in schema oval-results-schema_xsd Drilldown into subtestAttributes in schema oval-results-schema_xsd Drilldown into subtestStringType in schema oval-results-schema_xsdXSD Diagram of key in schema windows-oval-results-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="key" type="oval_results:subtestStringType" minOccurs="1" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>This element describes a registry key to be tested.  Note that the hive portion of the string should not be inclueded, as this data should be found under the hive element.</xsd:documentation>
        <xsd:appinfo>
            <parent_test>Registry Test</parent_test>
            <cardinality>1</cardinality>
            <content>string</content>
            <valid_datatypes>string</valid_datatypes>
            <valid_operators>equals, not equal, pattern match</valid_operators>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval_results:datatype string Optional
operator oval_results:operator equals Optional
var_ref oval_results:var_ref Optional
version oval_results:version 1 Optional
Collapse Derivation Tree:
