Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: local_port
Namespace: http://oval.mitre.org/XMLSchema/oval#redhat
Type: oval:subtestStringType
Containing Schema: redhat-schema.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
This is the TCP or UDP port on which the program listens. Note that this is not a list -- if a program listens on multiple ports, or on a combination of TCP and UDP, each will have its own entry in the table data stored by this test.

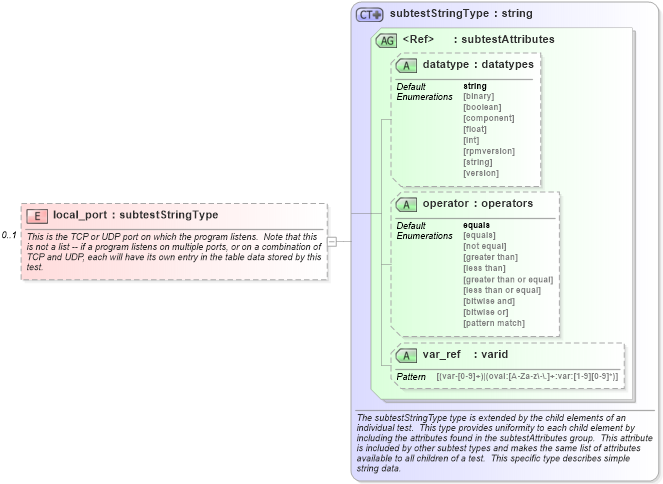

Collapse XSD Schema Diagram:
Drilldown into var_ref in schema oval-schema_xsd Drilldown into operator in schema oval-schema_xsd Drilldown into datatype in schema oval-schema_xsd Drilldown into subtestAttributes in schema oval-schema_xsd Drilldown into subtestStringType in schema oval-schema_xsdXSD Diagram of local_port in schema redhat-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="local_port" type="oval:subtestStringType" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>This is the TCP or UDP port on which the program listens.  Note that this is not a list -- if a program listens on multiple ports, or on a combination of  TCP and UDP, each will have its own entry in the table data stored by this test.</xsd:documentation>
        <xsd:appinfo>
            <parent_test>Inet Listening Servers Test</parent_test>
            <cardinality>0-1</cardinality>
            <content>string</content>
            <valid_datatypes>string</valid_datatypes>
            <valid_operators>equals, not equal, pattern match</valid_operators>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval:datatype string Optional
operator oval:operator equals Optional
var_ref oval:var_ref Optional
Collapse Derivation Tree:
