Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: local_port
Namespace: http://oval.mitre.org/XMLSchema/oval#windows
Type: oval:subtestIntType
Containing Schema: windows-schema.xsd
MinOccurs 1
MaxOccurs 1
Abstract
Documentation:
This element specifies the number assigned to the local listening port.

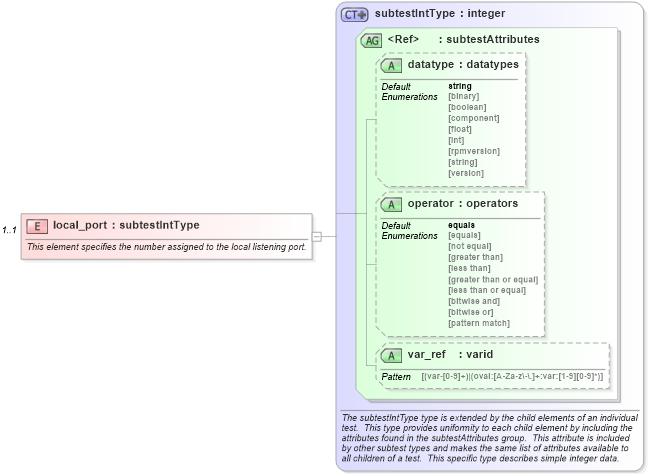

Collapse XSD Schema Diagram:
Drilldown into var_ref in schema oval-schema_xsd Drilldown into operator in schema oval-schema_xsd Drilldown into datatype in schema oval-schema_xsd Drilldown into subtestAttributes in schema oval-schema_xsd Drilldown into subtestIntType in schema oval-schema_xsdXSD Diagram of local_port in schema windows-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="local_port" type="oval:subtestIntType" minOccurs="1" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>This element specifies the number assigned to the local listening port.</xsd:documentation>
        <xsd:appinfo>
            <parent_test>Port Test</parent_test>
            <cardinality>1</cardinality>
            <content>integer</content>
            <valid_datatypes>integer</valid_datatypes>
            <valid_operators>equals, not equal, greater than, less than, greater than or equal, less than or equal</valid_operators>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval:datatype string Optional
operator oval:operator equals Optional
var_ref oval:var_ref Optional
Collapse Derivation Tree:
