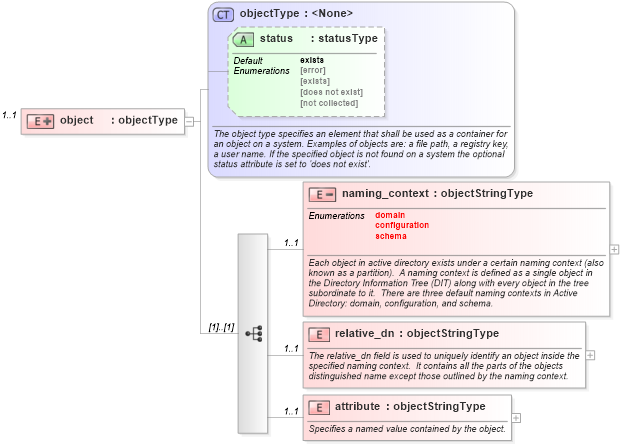

<xsd:element name="object" minOccurs="1" maxOccurs="1">
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="system_characteristics:objectType">
                <xsd:sequence>
                    <xsd:element name="naming_context" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Each object in active directory exists under a certain naming context (also known as a partition).  A naming context is defined as a single object in the Directory Information Tree (DIT) along with every object in the tree subordinate to it.  There are three default naming contexts in Active Directory: domain, configuration, and schema.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>activedirectory_item</parent_item>
                                <cardinality>1</cardinality>
                                <content>string</content>
                            </xsd:appinfo>
                        </xsd:annotation>
                        <xsd:complexType>
                            <xsd:simpleContent>
                                <xsd:restriction base="system_characteristics:objectStringType">
                                    <xsd:enumeration value="domain" />
                                    <xsd:enumeration value="configuration" />
                                    <xsd:enumeration value="schema" />
                                    <xsd:enumeration value="" />
                                </xsd:restriction>
                            </xsd:simpleContent>
                        </xsd:complexType>
                    </xsd:element>
                    <xsd:element name="relative_dn" type="system_characteristics:objectStringType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>The relative_dn field is used to uniquely identify an object inside the specified naming context.  It contains all the parts of the objects distinguished name except those outlined by the naming context.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>activedirectory_item</parent_item>
                                <cardinality>1</cardinality>
                                <content>string</content>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="attribute" type="system_characteristics:objectStringType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Specifies a named value contained by the object.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>activedirectory_item</parent_item>
                                <cardinality>1</cardinality>
                                <content>string</content>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>

• system_characteristics:objectType
  • object
