Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: object
Namespace: http://oval.mitre.org/XMLSchema/system_characteristics#hpux
Type: system_characteristics:objectType
Containing Schema: hpux-system-characteristics-schema.xsd
MinOccurs 1
MaxOccurs 1
Abstract

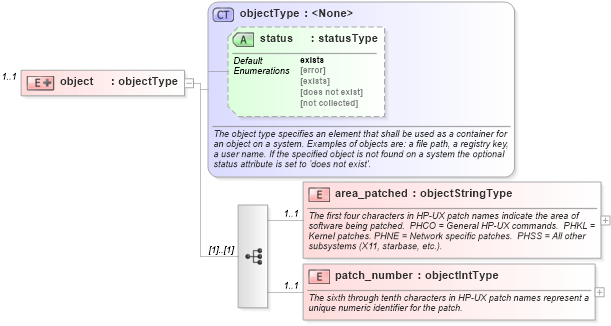

Collapse XSD Schema Diagram:
Drilldown into patch_number in schema hpux-system-characteristics-schema_xsd Drilldown into area_patched in schema hpux-system-characteristics-schema_xsd Drilldown into status in schema system-characteristics-schema_xsd Drilldown into objectType in schema system-characteristics-schema_xsdXSD Diagram of object in schema hpux-system-characteristics-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="object" minOccurs="1" maxOccurs="1">
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="system_characteristics:objectType">
                <xsd:sequence>
                    <xsd:element name="area_patched" type="system_characteristics:objectStringType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>The first four characters in HP-UX patch names indicate the area of software being patched.  PHCO = General HP-UX commands.  PHKL = Kernel patches. PHNE = Network specific patches.  PHSS = All other subsystems (X11, starbase, etc.).</xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>patch_item</parent_item>
                                <cardinality>1</cardinality>
                                <content>string</content>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="patch_number" type="system_characteristics:objectIntType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>The sixth through tenth characters in HP-UX patch names represent a unique numeric identifier for the patch.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>patch_item</parent_item>
                                <cardinality>1</cardinality>
                                <content>integer</content>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
area_patched hpux:area_patched 1 1
patch_number hpux:patch_number 1 1
Collapse Child Attributes:
Name Type Default Value Use
status system_characteristics:status exists Optional
Collapse Derivation Tree:
