Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: oval
Namespace: http://oval.mitre.org/XMLSchema/oval_results
Containing Schema: oval-results-schema.xsd
Abstract
Documentation:
Specifies the source of the OVAL Definitions.

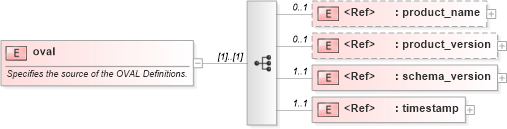

Collapse XSD Schema Diagram:
Drilldown into timestamp in schema oval-results-schema_xsd Drilldown into schema_version in schema oval-results-schema_xsd Drilldown into product_version in schema oval-results-schema_xsd Drilldown into product_name in schema oval-results-schema_xsdXSD Diagram of oval in schema oval-results-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="oval">
    <xsd:annotation>
        <xsd:documentation>Specifies the source of the OVAL Definitions.</xsd:documentation>
        <xsd:appinfo>
            <cardinality>1</cardinality>
            <attributes>none</attributes>
            <content>none</content>
            <parent_elements>generators</parent_elements>
            <child_elements>product_name, product_version, schema_version, timestamp</child_elements>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element ref="oval_results:product_name" minOccurs="0" maxOccurs="1" />
            <xsd:element ref="oval_results:product_version" minOccurs="0" maxOccurs="1" />
            <xsd:element ref="oval_results:schema_version" minOccurs="1" maxOccurs="1" />
            <xsd:element ref="oval_results:timestamp" minOccurs="1" maxOccurs="1" />
        </xsd:sequence>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
product_name oval_results:product_name 0 1
product_version oval_results:product_version 0 1
schema_version oval_results:schema_version 1 1
timestamp oval_results:timestamp 1 1
