Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: patch_test
Namespace: http://oval.mitre.org/XMLSchema/oval#solaris
Type: oval:standardTestType
Containing Schema: solaris-schema.xsd
Abstract
Documentation:
From /usr/bin/showrev -p. See showrev(1M).

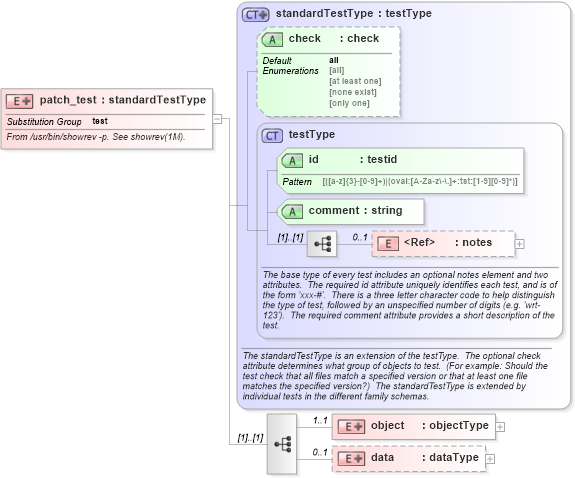

Collapse XSD Schema Diagram:
Drilldown into data in schema solaris-schema_xsd Drilldown into object in schema solaris-schema_xsd Drilldown into notes in schema oval-schema_xsd Drilldown into comment in schema oval-schema_xsd Drilldown into id in schema oval-schema_xsd Drilldown into testType in schema oval-schema_xsd Drilldown into check in schema oval-schema_xsd Drilldown into standardTestType in schema oval-schema_xsdXSD Diagram of patch_test in schema solaris-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="patch_test" substitutionGroup="oval:test">
    <xsd:annotation>
        <xsd:documentation>From /usr/bin/showrev -p. See showrev(1M).</xsd:documentation>
        <xsd:appinfo>
            <test_name>Patch Test</test_name>
            <extends>standardTestType</extends>
            <valid_sections>notes, object, data</valid_sections>
            <example />
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval:standardTestType">
                <xsd:sequence>
                    <xsd:element name="object" minOccurs="1" maxOccurs="1">
                        <xsd:complexType>
                            <xsd:complexContent>
                                <xsd:extension base="oval:objectType">
                                    <xsd:sequence>
                                        <xsd:element name="base" type="oval:subtestStringType" minOccurs="1" maxOccurs="1">
                                            <xsd:annotation>
                                                <xsd:documentation />
                                                <xsd:appinfo>
                                                    <parent_test>Patch Test</parent_test>
                                                    <cardinality>1</cardinality>
                                                    <content>string</content>
                                                    <valid_datatypes>string</valid_datatypes>
                                                    <valid_operators>equals, not equal, pattern match</valid_operators>
                                                </xsd:appinfo>
                                            </xsd:annotation>
                                        </xsd:element>
                                    </xsd:sequence>
                                </xsd:extension>
                            </xsd:complexContent>
                        </xsd:complexType>
                    </xsd:element>
                    <xsd:element name="data" minOccurs="0" maxOccurs="1">
                        <xsd:complexType>
                            <xsd:complexContent>
                                <xsd:extension base="oval:dataType">
                                    <xsd:sequence>
                                        <xsd:element name="version" type="oval:subtestStringType" minOccurs="0" maxOccurs="1">
                                            <xsd:annotation>
                                                <xsd:documentation />
                                                <xsd:appinfo>
                                                    <parent_test>Patch Test</parent_test>
                                                    <cardinality>0-1</cardinality>
                                                    <content>string</content>
                                                    <valid_datatypes>string</valid_datatypes>
                                                    <valid_operators>equals, not equal, pattern match</valid_operators>
                                                </xsd:appinfo>
                                            </xsd:annotation>
                                        </xsd:element>
                                    </xsd:sequence>
                                </xsd:extension>
                            </xsd:complexContent>
                        </xsd:complexType>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
notes oval:notes 0 1
object solaris:object 1 1
data solaris:data 0 1
Collapse Child Attributes:
Name Type Default Value Use
id oval:id Required
comment oval:comment Required
check oval:check all Optional
Collapse Derivation Tree:
Collapse References:
oval:test
