<xsd:element name="port_item" substitutionGroup="system_characteristics:item">
<xsd:annotation>
<xsd:documentation>Information about open listening ports.</xsd:documentation>
<xsd:appinfo>
<item_name>Port Item</item_name>
<extends>itemType</extends>
<valid_sections>message, object, data</valid_sections>
<example>
</example>
</xsd:appinfo>
</xsd:annotation>
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="system_characteristics:itemType">
<xsd:sequence>
<xsd:element name="object" minOccurs="1" maxOccurs="1">
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="system_characteristics:objectType">
<xsd:sequence>
<xsd:element name="local_address" type="system_characteristics:objectStringType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>This element specifies the local IP address the listening port is bound to.</xsd:documentation>
<xsd:appinfo>
<parent_item>Port Item</parent_item>
<cardinality>1</cardinality>
<content>string</content>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="local_port" type="system_characteristics:objectIntType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>This element specifies the number assigned to the local listening port.</xsd:documentation>
<xsd:appinfo>
<parent_item>Port Item</parent_item>
<cardinality>1</cardinality>
<content>integer</content>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="protocol" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>This element specifies the type of listening port. It is restricted to either TCP or UDP.</xsd:documentation>
<xsd:appinfo>
<parent_item>Port Item</parent_item>
<cardinality>1</cardinality>
<content>string</content>
</xsd:appinfo>
</xsd:annotation>
<xsd:complexType>
<xsd:simpleContent>
<xsd:restriction base="system_characteristics:objectStringType">
<xsd:enumeration value="TCP" />
<xsd:enumeration value="UDP" />
</xsd:restriction>
</xsd:simpleContent>
</xsd:complexType>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
<xsd:element name="data" minOccurs="0" maxOccurs="1">
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="system_characteristics:dataType">
<xsd:sequence>
<xsd:element name="pid" type="system_characteristics:dataIntType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>The id given to the process that is associated with the specified listening port.</xsd:documentation>
<xsd:appinfo>
<parent_item>Port Item</parent_item>
<cardinality>1</cardinality>
<content>integer</content>
<valid_datatypes>integer</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
|

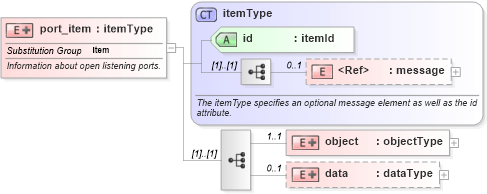

XSD Schema Diagram:
