<xsd:element name="registry_test" substitutionGroup="oval:test">
<xsd:annotation>
<xsd:documentation>The windows registry test specifies a particular registry key (or keys) to test</xsd:documentation>
<xsd:appinfo>
<test_name>Registry Test</test_name>
<extends>standardTestType</extends>
<valid_sections>notes, object, data</valid_sections>
<example>
<registry_test id="wrt-0" check="all" comment="Windows XP is installed" xmlns="http://oval.mitre.org/XMLSchema/oval#windows">
<oval:notes xmlns:oval="http://oval.mitre.org/XMLSchema/oval">
<oval:note>This is an example test written under version 4 of the OVAL schema. It is meant to give a short overview of the test and might not contain every possible child element.</oval:note>
</oval:notes>
<object>
<hive>HKEY_LOCAL_MACHINE</hive>
<key>SOFTWARE\Microsoft\Windows NT\CurrentVersion</key>
<name>CurrentVersion</name>
</object>
<data operation="AND">
<value operator="equals">5.1</value>
</data>
</registry_test>
</example>
</xsd:appinfo>
</xsd:annotation>
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="oval:standardTestType">
<xsd:sequence>
<xsd:element name="object" minOccurs="1" maxOccurs="1">
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="oval:objectType">
<xsd:sequence>
<xsd:element name="hive" type="windows:subtestHiveType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>The hive that the registry key belongs to.</xsd:documentation>
<xsd:appinfo>
<parent_test>Registry Test</parent_test>
<cardinality>1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
<valid_operators>equals, not equal</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="key" type="oval:subtestStringType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>This element describes a registry key to be tested. Note that the hive portion of the string should not be inclueded, as this data should be found under the hive element.</xsd:documentation>
<xsd:appinfo>
<parent_test>Registry Test</parent_test>
<cardinality>1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
<valid_operators>equals, not equal, pattern match</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="name" type="oval:subtestStringType" minOccurs="1" maxOccurs="1" nillable="true">
<xsd:annotation>
<xsd:documentation>This element describes the name of a value of a registry key. If the nillable attribute is set to true, then the name element should not be used in analysis.</xsd:documentation>
<xsd:appinfo>
<parent_test>Registry Test</parent_test>
<cardinality>1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
<valid_operators>equals, not equal, pattern match</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
<xsd:element name="data" minOccurs="0" maxOccurs="1">
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="oval:dataType">
<xsd:sequence>
<xsd:element name="type" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Specifies the type of data stored by the registry key.</xsd:documentation>
<xsd:appinfo>
<parent_test>Registry Test</parent_test>
<cardinality>0-1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
<valid_operators>equals, not equal</valid_operators>
</xsd:appinfo>
</xsd:annotation>
<xsd:complexType>
<xsd:simpleContent>
<xsd:restriction base="oval:subtestStringType">
<xsd:enumeration value="reg_binary" />
<xsd:enumeration value="reg_dword" />
<xsd:enumeration value="reg_expand_sz" />
<xsd:enumeration value="reg_multi_sz" />
<xsd:enumeration value="reg_qword" />
<xsd:enumeration value="reg_sz" />
</xsd:restriction>
</xsd:simpleContent>
</xsd:complexType>
</xsd:element>
<xsd:element name="value" type="oval:subtestStringType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>The actual value of the specified registry key.</xsd:documentation>
<xsd:appinfo>
<parent_test>Registry Test</parent_test>
<cardinality>0-1</cardinality>
<content>string</content>
<valid_datatypes>binary, boolean, float, int, string</valid_datatypes>
<valid_operators>equals, not equal, greater than, less than, greater than or equal, less than or equal, bitwise and, bitwise or, pattern match</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
|

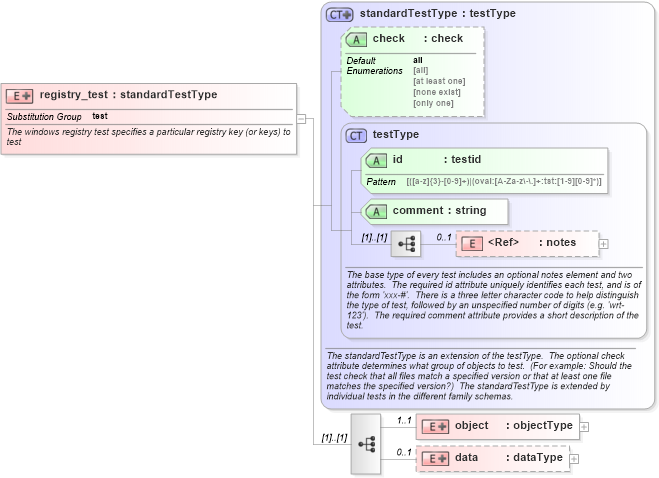

XSD Schema Diagram:
