Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: relative_dn
Namespace: http://oval.mitre.org/XMLSchema/oval_results#windows
Type: oval_results:subtestStringType
Containing Schema: windows-oval-results-schema.xsd
MinOccurs 1
MaxOccurs 1
Abstract
Documentation:
The relative_dn field is used to uniquely identify an object inside the specified naming context. It contains all the parts of the objects distinguished name except those outlined by the naming context.

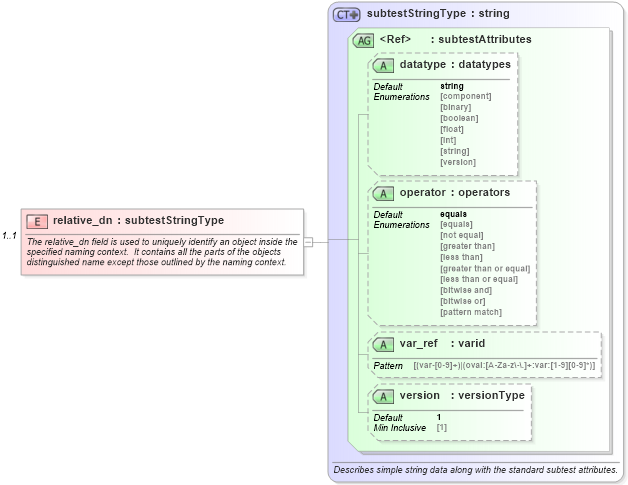

Collapse XSD Schema Diagram:
Drilldown into version in schema oval-results-schema_xsd Drilldown into var_ref in schema oval-results-schema_xsd Drilldown into operator in schema oval-results-schema_xsd Drilldown into datatype in schema oval-results-schema_xsd Drilldown into subtestAttributes in schema oval-results-schema_xsd Drilldown into subtestStringType in schema oval-results-schema_xsdXSD Diagram of relative_dn in schema windows-oval-results-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="relative_dn" type="oval_results:subtestStringType" minOccurs="1" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>The relative_dn field is used to uniquely identify an object inside the specified naming context.  It contains all the parts of the objects distinguished name except those outlined by the naming context.</xsd:documentation>
        <xsd:appinfo>
            <parent_test>Active Directory Test</parent_test>
            <cardinality>1</cardinality>
            <content>string</content>
            <valid_datatypes>string</valid_datatypes>
            <valid_operators>equals, not equal, pattern match</valid_operators>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval_results:datatype string Optional
operator oval_results:operator equals Optional
var_ref oval_results:var_ref Optional
version oval_results:version 1 Optional
Collapse Derivation Tree:
