Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: result
Namespace: http://oval.mitre.org/XMLSchema/oval_results#windows
Type: oval_results:subtestStringType
Containing Schema: windows-oval-results-schema.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
he result element specifies how to test objects in the result set of the specified WQL statement. Only one comparable field is allowed. So if the WQL statement look like 'SELECT name FROM ...', then a result element with a value of 'Fred' would test that value against the names returned by the WQL statement.

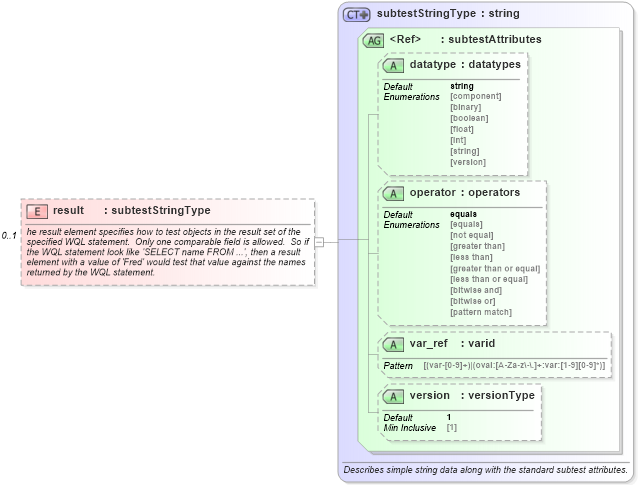

Collapse XSD Schema Diagram:
Drilldown into version in schema oval-results-schema_xsd Drilldown into var_ref in schema oval-results-schema_xsd Drilldown into operator in schema oval-results-schema_xsd Drilldown into datatype in schema oval-results-schema_xsd Drilldown into subtestAttributes in schema oval-results-schema_xsd Drilldown into subtestStringType in schema oval-results-schema_xsdXSD Diagram of result in schema windows-oval-results-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="result" type="oval_results:subtestStringType" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>he result element specifies how to test objects in the result set of the specified WQL statement.  Only one comparable field is allowed.  So if the WQL statement look like 'SELECT name FROM ...', then a result element with a value of 'Fred' would test that value against the names returned by the WQL statement.</xsd:documentation>
        <xsd:appinfo>
            <parent_test>WMI Test</parent_test>
            <cardinality>0-1</cardinality>
            <content>none</content>
            <valid_datatypes>binary, boolean, float, int, string</valid_datatypes>
            <valid_operators>equals, not equal, greater than, less than, greater than or equal, less than or equal, bitwise and, bitwise or, pattern match</valid_operators>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval_results:datatype string Optional
operator oval_results:operator equals Optional
var_ref oval_results:var_ref Optional
version oval_results:version 1 Optional
Collapse Derivation Tree:
