Documentation for OASIS Security Services (SAML) TC
Definition Type: Element
Name: Assertion
Namespace: urn:oasis:names:tc:SAML:1.0:assertion
Type: saml:AssertionType
Containing Schema: oasis-sstc-saml-schema-assertion-1.0.xsd
Abstract

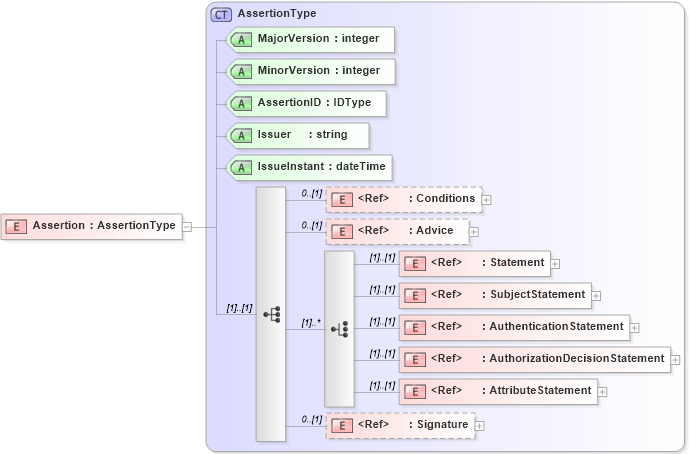

Collapse XSD Schema Diagram:
Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into AttributeStatement in schema oasis-sstc-saml-schema-assertion-1_0_xsd Drilldown into AuthorizationDecisionStatement in schema oasis-sstc-saml-schema-assertion-1_0_xsd Drilldown into AuthenticationStatement in schema oasis-sstc-saml-schema-assertion-1_0_xsd Drilldown into SubjectStatement in schema oasis-sstc-saml-schema-assertion-1_0_xsd Drilldown into Statement in schema oasis-sstc-saml-schema-assertion-1_0_xsd Drilldown into Advice in schema oasis-sstc-saml-schema-assertion-1_0_xsd Drilldown into Conditions in schema oasis-sstc-saml-schema-assertion-1_0_xsd Drilldown into IssueInstant in schema oasis-sstc-saml-schema-assertion-1_0_xsd Drilldown into Issuer in schema oasis-sstc-saml-schema-assertion-1_0_xsd Drilldown into AssertionID in schema oasis-sstc-saml-schema-assertion-1_0_xsd Drilldown into MinorVersion in schema oasis-sstc-saml-schema-assertion-1_0_xsd Drilldown into MajorVersion in schema oasis-sstc-saml-schema-assertion-1_0_xsd Drilldown into AssertionType in schema oasis-sstc-saml-schema-assertion-1_0_xsdXSD Diagram of Assertion in schema oasis-sstc-saml-schema-assertion-1_0_xsd (OASIS Security Services (SAML) TC)
Collapse XSD Schema Code:
<element name="Assertion" type="saml:AssertionType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Conditions saml:Conditions 0 (1)
Advice saml:Advice 0 (1)
Statement saml:Statement (1) (1)
SubjectStatement saml:SubjectStatement (1) (1)
AuthenticationStatement saml:AuthenticationStatement (1) (1)
AuthorizationDecisionStatement saml:AuthorizationDecisionStatement (1) (1)
AttributeStatement saml:AttributeStatement (1) (1)
Signature ds:Signature 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
MajorVersion saml:MajorVersion Required
MinorVersion saml:MinorVersion Required
AssertionID saml:AssertionID Required
Issuer saml:Issuer Required
IssueInstant saml:IssueInstant Required
Collapse Derivation Tree:
