Documentation for OASIS Security Services (SAML) TC
Definition Type: ComplexType
Name: AttributeQueryType
Namespace: urn:oasis:names:tc:SAML:1.0:protocol
Type: samlp:SubjectQueryAbstractType
Containing Schema: oasis-sstc-saml-schema-protocol-1.0.xsd
Abstract

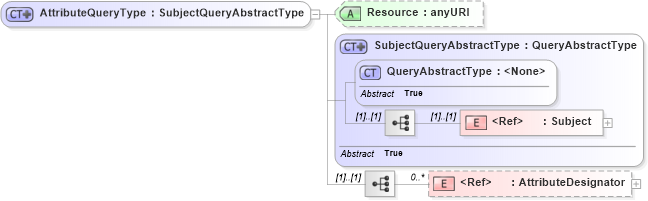

Collapse XSD Schema Diagram:
Drilldown into AttributeDesignator in schema oasis-sstc-saml-schema-assertion-1_0_xsd Drilldown into Subject in schema oasis-sstc-saml-schema-assertion-1_0_xsd Drilldown into QueryAbstractType in schema oasis-sstc-saml-schema-protocol-1_0_xsd Drilldown into SubjectQueryAbstractType in schema oasis-sstc-saml-schema-protocol-1_0_xsd Drilldown into Resource in schema oasis-sstc-saml-schema-protocol-1_0_xsdXSD Diagram of AttributeQueryType in schema oasis-sstc-saml-schema-protocol-1_0_xsd (OASIS Security Services (SAML) TC)
Collapse XSD Schema Code:
<complexType name="AttributeQueryType">
    <complexContent>
        <extension base="samlp:SubjectQueryAbstractType">
            <sequence>
                <element ref="saml:AttributeDesignator" minOccurs="0" maxOccurs="unbounded" />
            </sequence>
            <attribute name="Resource" type="anyURI" use="optional" />
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Subject saml:Subject (1) (1)
AttributeDesignator saml:AttributeDesignator 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
Resource samlp:Resource Optional
Collapse Derivation Tree:
Collapse References:
samlp:AttributeQuery
