Docs for schema item AuthenticationStatementType in OASIS Security Services (SAML) TC

Documentation for OASIS Security Services (SAML) TC

Definition Type:	ComplexType
Name:	AuthenticationStatementType
Namespace:	urn:oasis:names:tc:SAML:1.0:assertion
Type:	saml:SubjectStatementAbstractType
Containing Schema:	oasis-sstc-saml-schema-assertion-1.0.xsd
Abstract

XSD Schema Diagram:

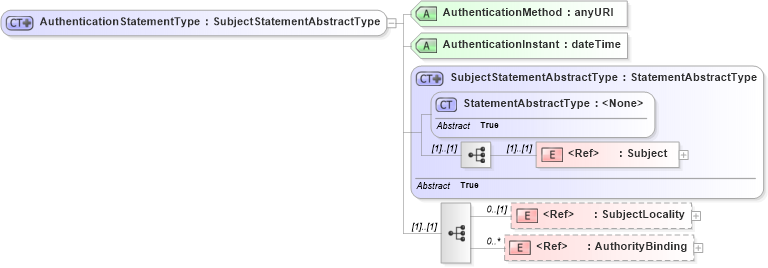

XSD Diagram of AuthenticationStatementType in schema oasis-sstc-saml-schema-assertion-1_0_xsd (OASIS Security Services (SAML) TC)

XSD Schema Code:

<complexType name="AuthenticationStatementType">
    <complexContent>
        <extension base="saml:SubjectStatementAbstractType">
            <sequence>
                <element ref="saml:SubjectLocality" minOccurs="0" />
                <element ref="saml:AuthorityBinding" minOccurs="0" maxOccurs="unbounded" />
            </sequence>
            <attribute name="AuthenticationMethod" type="anyURI" use="required" />
            <attribute name="AuthenticationInstant" type="dateTime" use="required" />
        </extension>
    </complexContent>
</complexType>

Child Elements:

Name	Type	Min Occurs	Max Occurs
Subject	saml:Subject	(1)	(1)
SubjectLocality	saml:SubjectLocality	0	(1)
AuthorityBinding	saml:AuthorityBinding	0	unbounded

Child Attributes:

Name	Type	Default Value	Use
AuthenticationMethod	saml:AuthenticationMethod		Required
AuthenticationInstant	saml:AuthenticationInstant		Required

Derivation Tree:
	saml:StatementAbstractType saml:SubjectStatementAbstractType *AuthenticationStatementType* saml:AuthenticationStatement

References:
	saml:AuthenticationStatement
