Documentation for OASIS UDDI Specification TC
Definition Type: ComplexType
Name: address
Namespace: urn:uddi-org:api_v3
Containing Schema: uddi_v3.xsd
Abstract
Collapse XSD Schema Diagram:

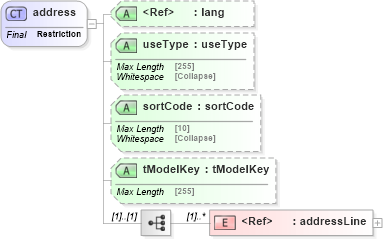

Drilldown into addressLine in schema uddi_v3_xsd Drilldown into tModelKey in schema uddi_v3_xsd Drilldown into sortCode in schema uddi_v3_xsd Drilldown into useType in schema uddi_v3_xsd Drilldown into lang in schema xml_xsdXSD Diagram of address in schema uddi_v3_xsd (OASIS UDDI Specification TC)
Collapse XSD Schema Code:
<xsd:complexType name="address" final="restriction">
    <xsd:sequence>
        <xsd:element ref="uddi:addressLine" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute ref="xml:lang" use="optional" />
    <xsd:attribute name="useType" type="uddi:useType" use="optional" default="" />
    <xsd:attribute name="sortCode" type="uddi:sortCode" use="optional" default="" />
    <xsd:attribute name="tModelKey" type="uddi:tModelKey" use="optional" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
addressLine uddi:addressLine (1) unbounded
Collapse Child Attributes:
Name Type Default Value Use
lang nsA:lang Optional
useType uddi:useType Optional
sortCode uddi:sortCode Optional
tModelKey uddi:tModelKey Optional
Collapse Derivation Tree:
Collapse References:
uddi:address
