Documentation for OASIS UDDI Specification TC
Definition Type: ComplexType
Name: assertionStatusItem
Namespace: urn:uddi-org:api_v3
Containing Schema: uddi_v3.xsd
Abstract

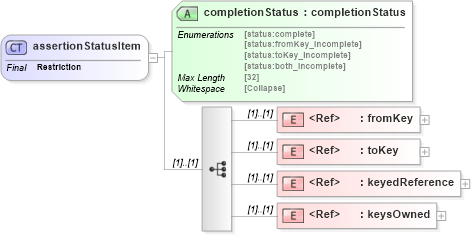

Collapse XSD Schema Diagram:
Drilldown into keysOwned in schema uddi_v3_xsd Drilldown into keyedReference in schema uddi_v3_xsd Drilldown into toKey in schema uddi_v3_xsd Drilldown into fromKey in schema uddi_v3_xsd Drilldown into completionStatus in schema uddi_v3_xsdXSD Diagram of assertionStatusItem in schema uddi_v3_xsd (OASIS UDDI Specification TC)
Collapse XSD Schema Code:
<xsd:complexType name="assertionStatusItem" final="restriction">
    <xsd:sequence>
        <xsd:element ref="uddi:fromKey" />
        <xsd:element ref="uddi:toKey" />
        <xsd:element ref="uddi:keyedReference" />
        <xsd:element ref="uddi:keysOwned" />
    </xsd:sequence>
    <xsd:attribute name="completionStatus" type="uddi:completionStatus" use="required" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
fromKey uddi:fromKey (1) (1)
toKey uddi:toKey (1) (1)
keyedReference uddi:keyedReference (1) (1)
keysOwned uddi:keysOwned (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
completionStatus uddi:completionStatus Required
Collapse Derivation Tree:
Collapse References:
uddi:assertionStatusItem
