Documentation for OASIS UDDI Specification TC
Definition Type: Element
Name: assertionStatusItem
Namespace: urn:uddi-org:api_v3
Type: uddi:assertionStatusItem
Containing Schema: uddi_v3.xsd
Abstract

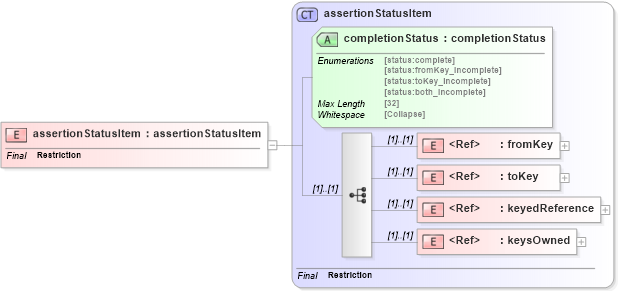

Collapse XSD Schema Diagram:
Drilldown into keysOwned in schema uddi_v3_xsd Drilldown into keyedReference in schema uddi_v3_xsd Drilldown into toKey in schema uddi_v3_xsd Drilldown into fromKey in schema uddi_v3_xsd Drilldown into completionStatus in schema uddi_v3_xsd Drilldown into assertionStatusItem in schema uddi_v3_xsdXSD Diagram of assertionStatusItem in schema uddi_v3_xsd (OASIS UDDI Specification TC)
Collapse XSD Schema Code:
<xsd:element name="assertionStatusItem" type="uddi:assertionStatusItem" final="restriction" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
fromKey uddi:fromKey (1) (1)
toKey uddi:toKey (1) (1)
keyedReference uddi:keyedReference (1) (1)
keysOwned uddi:keysOwned (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
completionStatus uddi:completionStatus Required
Collapse Derivation Tree:
