Definition Type: ComplexType
Name: bindingTemplate
Namespace: urn:uddi-org:api_v3
Containing Schema: uddi_v3.xsd
Abstract

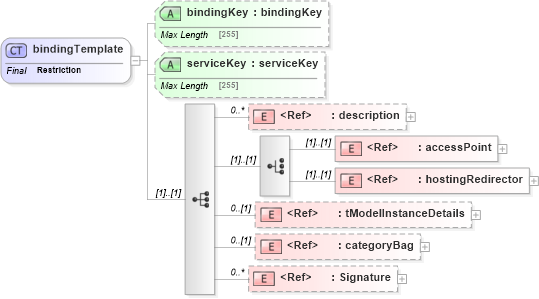

Collapse XSD Schema Diagram:
Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into categoryBag in schema uddi_v3_xsd Drilldown into tModelInstanceDetails in schema uddi_v3_xsd Drilldown into hostingRedirector in schema uddi_v3_xsd Drilldown into accessPoint in schema uddi_v3_xsd Drilldown into description in schema uddi_v3_xsd Drilldown into serviceKey in schema uddi_v3_xsd Drilldown into bindingKey in schema uddi_v3_xsdXSD Diagram of bindingTemplate in schema uddi_v3_xsd (OASIS UDDI Specification TC)
Collapse XSD Schema Code:
<xsd:complexType name="bindingTemplate" final="restriction">
    <xsd:sequence>
        <xsd:element ref="uddi:description" minOccurs="0" maxOccurs="unbounded" />
        <xsd:choice>
            <xsd:element ref="uddi:accessPoint" />
            <xsd:element ref="uddi:hostingRedirector" />
        </xsd:choice>
        <xsd:element ref="uddi:tModelInstanceDetails" minOccurs="0" />
        <xsd:element ref="uddi:categoryBag" minOccurs="0" />
        <xsd:element ref="dsig:Signature" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="bindingKey" type="uddi:bindingKey" use="optional" />
    <xsd:attribute name="serviceKey" type="uddi:serviceKey" use="optional" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
description uddi:description 0 unbounded
accessPoint uddi:accessPoint (1) (1)
hostingRedirector uddi:hostingRedirector (1) (1)
tModelInstanceDetails uddi:tModelInstanceDetails 0 (1)
categoryBag uddi:categoryBag 0 (1)
Signature dsig:Signature 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
bindingKey uddi:bindingKey Optional
serviceKey uddi:serviceKey Optional
Collapse Derivation Tree:
Collapse References:
uddi:bindingTemplate
