Documentation for OASIS UDDI Specification TC
Definition Type: ComplexType
Name: businessEntity
Namespace: urn:uddi-org:api_v3
Containing Schema: uddi_v3.xsd
Abstract
Collapse XSD Schema Diagram:

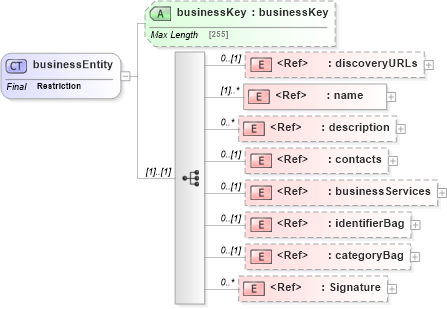

Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into categoryBag in schema uddi_v3_xsd Drilldown into identifierBag in schema uddi_v3_xsd Drilldown into businessServices in schema uddi_v3_xsd Drilldown into contacts in schema uddi_v3_xsd Drilldown into description in schema uddi_v3_xsd Drilldown into name in schema uddi_v3_xsd Drilldown into discoveryURLs in schema uddi_v3_xsd Drilldown into businessKey in schema uddi_v3_xsdXSD Diagram of businessEntity in schema uddi_v3_xsd (OASIS UDDI Specification TC)
Collapse XSD Schema Code:
<xsd:complexType name="businessEntity" final="restriction">
    <xsd:sequence>
        <xsd:element ref="uddi:discoveryURLs" minOccurs="0" />
        <xsd:element ref="uddi:name" maxOccurs="unbounded" />
        <xsd:element ref="uddi:description" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="uddi:contacts" minOccurs="0" />
        <xsd:element ref="uddi:businessServices" minOccurs="0" />
        <xsd:element ref="uddi:identifierBag" minOccurs="0" />
        <xsd:element ref="uddi:categoryBag" minOccurs="0" />
        <xsd:element ref="dsig:Signature" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="businessKey" type="uddi:businessKey" use="optional" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
discoveryURLs uddi:discoveryURLs 0 (1)
name uddi:name (1) unbounded
description uddi:description 0 unbounded
contacts uddi:contacts 0 (1)
businessServices uddi:businessServices 0 (1)
identifierBag uddi:identifierBag 0 (1)
categoryBag uddi:categoryBag 0 (1)
Signature dsig:Signature 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
businessKey uddi:businessKey Optional
Collapse Derivation Tree:
Collapse References:
uddi:businessEntity
