Documentation for OASIS UDDI Specification TC
Definition Type: Element
Name: businessEntity
Namespace: urn:uddi-org:api_v3
Type: uddi:businessEntity
Containing Schema: uddi_v3.xsd
Abstract

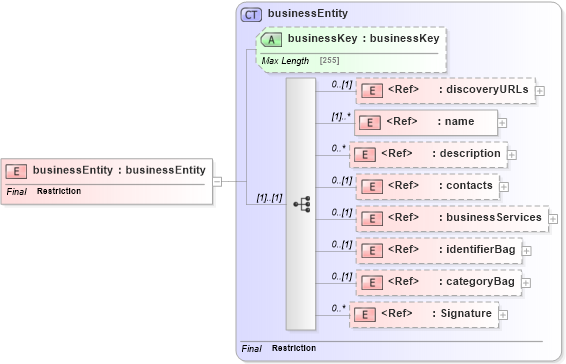

Collapse XSD Schema Diagram:
Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into categoryBag in schema uddi_v3_xsd Drilldown into identifierBag in schema uddi_v3_xsd Drilldown into businessServices in schema uddi_v3_xsd Drilldown into contacts in schema uddi_v3_xsd Drilldown into description in schema uddi_v3_xsd Drilldown into name in schema uddi_v3_xsd Drilldown into discoveryURLs in schema uddi_v3_xsd Drilldown into businessKey in schema uddi_v3_xsd Drilldown into businessEntity in schema uddi_v3_xsdXSD Diagram of businessEntity in schema uddi_v3_xsd (OASIS UDDI Specification TC)
Collapse XSD Schema Code:
<xsd:element name="businessEntity" type="uddi:businessEntity" final="restriction" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
discoveryURLs uddi:discoveryURLs 0 (1)
name uddi:name (1) unbounded
description uddi:description 0 unbounded
contacts uddi:contacts 0 (1)
businessServices uddi:businessServices 0 (1)
identifierBag uddi:identifierBag 0 (1)
categoryBag uddi:categoryBag 0 (1)
Signature dsig:Signature 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
businessKey uddi:businessKey Optional
Collapse Derivation Tree:
