Documentation for OASIS UDDI Specification TC
Definition Type: Element
Name: businessService
Namespace: urn:uddi-org:api_v3
Type: uddi:businessService
Containing Schema: uddi_v3.xsd
Abstract

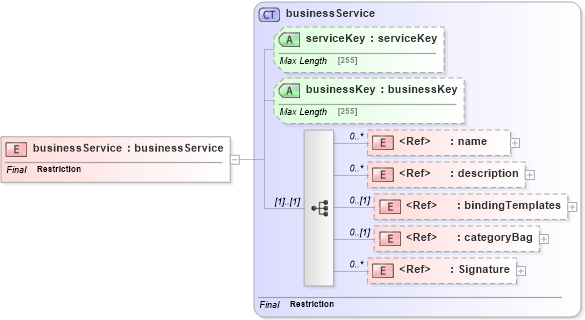

Collapse XSD Schema Diagram:
Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into categoryBag in schema uddi_v3_xsd Drilldown into bindingTemplates in schema uddi_v3_xsd Drilldown into description in schema uddi_v3_xsd Drilldown into name in schema uddi_v3_xsd Drilldown into businessKey in schema uddi_v3_xsd Drilldown into serviceKey in schema uddi_v3_xsd Drilldown into businessService in schema uddi_v3_xsdXSD Diagram of businessService in schema uddi_v3_xsd (OASIS UDDI Specification TC)
Collapse XSD Schema Code:
<xsd:element name="businessService" type="uddi:businessService" final="restriction" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name uddi:name 0 unbounded
description uddi:description 0 unbounded
bindingTemplates uddi:bindingTemplates 0 (1)
categoryBag uddi:categoryBag 0 (1)
Signature dsig:Signature 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
serviceKey uddi:serviceKey Optional
businessKey uddi:businessKey Optional
Collapse Derivation Tree:
