Definition Type: ComplexType
Name: contact
Namespace: urn:uddi-org:api_v3
Containing Schema: uddi_v3.xsd
Abstract

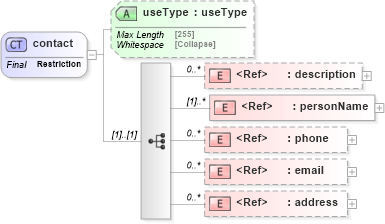

Collapse XSD Schema Diagram:
Drilldown into address in schema uddi_v3_xsd Drilldown into email in schema uddi_v3_xsd Drilldown into phone in schema uddi_v3_xsd Drilldown into personName in schema uddi_v3_xsd Drilldown into description in schema uddi_v3_xsd Drilldown into useType in schema uddi_v3_xsdXSD Diagram of contact in schema uddi_v3_xsd (OASIS UDDI Specification TC)
Collapse XSD Schema Code:
<xsd:complexType name="contact" final="restriction">
    <xsd:sequence>
        <xsd:element ref="uddi:description" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="uddi:personName" maxOccurs="unbounded" />
        <xsd:element ref="uddi:phone" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="uddi:email" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="uddi:address" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="useType" type="uddi:useType" use="optional" default="" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
description uddi:description 0 unbounded
personName uddi:personName (1) unbounded
phone uddi:phone 0 unbounded
email uddi:email 0 unbounded
address uddi:address 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
useType uddi:useType Optional
Collapse Derivation Tree:
Collapse References:
uddi:contact
