Documentation for OASIS UDDI Specification TC
Definition Type: ComplexType
Name: find_binding
Namespace: urn:uddi-org:api_v3
Containing Schema: uddi_v3.xsd
Abstract

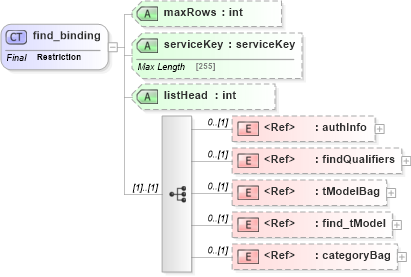

Collapse XSD Schema Diagram:
Drilldown into categoryBag in schema uddi_v3_xsd Drilldown into find_tModel in schema uddi_v3_xsd Drilldown into tModelBag in schema uddi_v3_xsd Drilldown into findQualifiers in schema uddi_v3_xsd Drilldown into authInfo in schema uddi_v3_xsd Drilldown into listHead in schema uddi_v3_xsd Drilldown into serviceKey in schema uddi_v3_xsd Drilldown into maxRows in schema uddi_v3_xsdXSD Diagram of find_binding in schema uddi_v3_xsd (OASIS UDDI Specification TC)
Collapse XSD Schema Code:
<xsd:complexType name="find_binding" final="restriction">
    <xsd:sequence>
        <xsd:element ref="uddi:authInfo" minOccurs="0" />
        <xsd:element ref="uddi:findQualifiers" minOccurs="0" />
        <xsd:element ref="uddi:tModelBag" minOccurs="0" />
        <xsd:element ref="uddi:find_tModel" minOccurs="0" />
        <xsd:element ref="uddi:categoryBag" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="maxRows" type="xsd:int" use="optional" />
    <xsd:attribute name="serviceKey" type="uddi:serviceKey" use="optional" />
    <xsd:attribute name="listHead" type="xsd:int" use="optional" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
authInfo uddi:authInfo 0 (1)
findQualifiers uddi:findQualifiers 0 (1)
tModelBag uddi:tModelBag 0 (1)
find_tModel uddi:find_tModel 0 (1)
categoryBag uddi:categoryBag 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
maxRows uddi:maxRows Optional
serviceKey uddi:serviceKey Optional
listHead uddi:listHead Optional
Collapse Derivation Tree:
Collapse References:
uddi:find_binding
