Definition Type: ComplexType
Name: find_relatedBusinesses
Namespace: urn:uddi-org:api_v3
Containing Schema: uddi_v3.xsd
Abstract

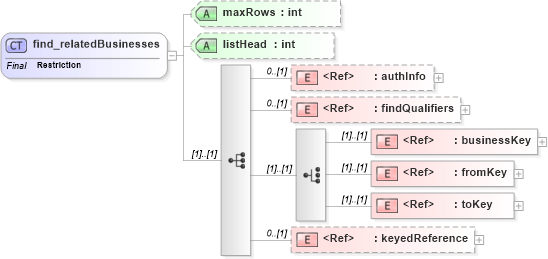

Collapse XSD Schema Diagram:
Drilldown into keyedReference in schema uddi_v3_xsd Drilldown into toKey in schema uddi_v3_xsd Drilldown into fromKey in schema uddi_v3_xsd Drilldown into businessKey in schema uddi_v3_xsd Drilldown into findQualifiers in schema uddi_v3_xsd Drilldown into authInfo in schema uddi_v3_xsd Drilldown into listHead in schema uddi_v3_xsd Drilldown into maxRows in schema uddi_v3_xsdXSD Diagram of find_relatedBusinesses in schema uddi_v3_xsd (OASIS UDDI Specification TC)
Collapse XSD Schema Code:
<xsd:complexType name="find_relatedBusinesses" final="restriction">
    <xsd:sequence>
        <xsd:element ref="uddi:authInfo" minOccurs="0" />
        <xsd:element ref="uddi:findQualifiers" minOccurs="0" />
        <xsd:choice>
            <xsd:element ref="uddi:businessKey" />
            <xsd:element ref="uddi:fromKey" />
            <xsd:element ref="uddi:toKey" />
        </xsd:choice>
        <xsd:element ref="uddi:keyedReference" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="maxRows" type="xsd:int" use="optional" />
    <xsd:attribute name="listHead" type="xsd:int" use="optional" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
authInfo uddi:authInfo 0 (1)
findQualifiers uddi:findQualifiers 0 (1)
businessKey uddi:businessKey (1) (1)
fromKey uddi:fromKey (1) (1)
toKey uddi:toKey (1) (1)
keyedReference uddi:keyedReference 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
maxRows uddi:maxRows Optional
listHead uddi:listHead Optional
Collapse Derivation Tree:
Collapse References:
uddi:find_relatedBusinesses
